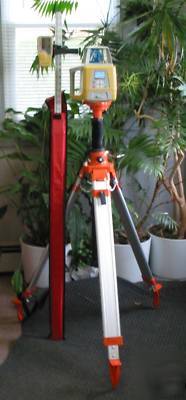

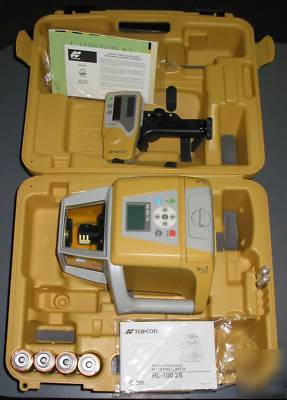

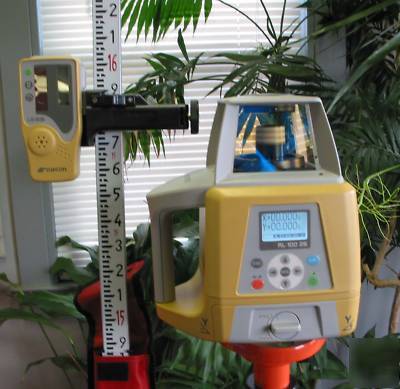

New topcon rl-100 2S-l rotating slope laser outfit
New Topcon RL-100 2S Dual Grade Laser Level Kit
The new Topcon RL-100 slope laser series offers advanced slope capability and functions at an affordable price. As with all Topcon instruments, the RL-100 is built to the highest standards in both ruggedness and accuracy. Using a survey quality encoder system, the RL-100 2S has an accuracy of 10 seconds (1/16" @ 100 Ft) and can produce up to 25% grade, without tilting the laser.
RL-100 2S features include a fully mechanical self-leveling and a waterproof housing. Just push the green ON button and the self-leveling motors take over. An out-of-level alert stops the unit when disturbed. The unit also features 3 quadrant masking, 300/600/900 rpm speeds, HI alert at the sensor & laser, and vibration sensitivity selector. The "2S" provides up to 10% pitch in the cross axis, in addition to the 25% main axis pitch. The RL-100 2S can easily handle compound slope applications, such as football fields, or steep slope applications, such as landfill closures.
