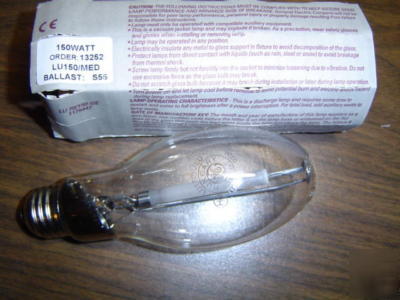

New ge LU150 med high pressure sodium lamp S55 13252
GE LU150 MED High Pressure Sodium Lamp S55 GE Product code:13252 NEW
* Lamp type High Intensity Discharge - High Pressure Sodium
* Rated Life (MIN) 24000 hrs
* Lamp Enclosure Type (LET) Open or enclosed fixtures
* Nominal Initial Lumens per Watt 106
* Color Rendering Index (CRI) 22
* Effective Arc Length 1.570000 in (39.878000 mm)
* Burn Position Universal burning position
* Open Circuit Voltage (RMS lag ballast) (MIN) 110 V
* Warm Up Time to 90% (MIN) 3 min
* Warm Up Time to 90% (MAX) 4 min
* Hot Restart Time to 90% (MAX) 0.670 min
* Maximum Overall Length (MOL) 5.7500 in (146.0 mm)
* Nominal Length 5.750 in (146.0 mm)
* Bulb Diameter (DIA) 2.125 in (53.9 mm)
* Light Center Length (LCL) 3.500 in (88.9 mm)
