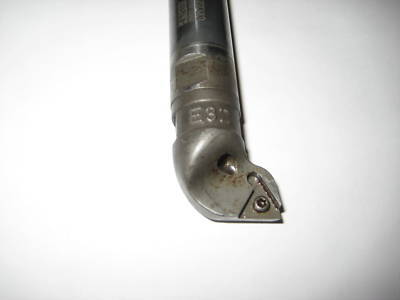

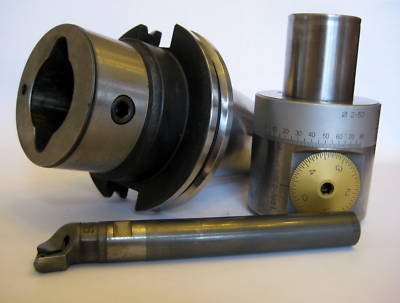

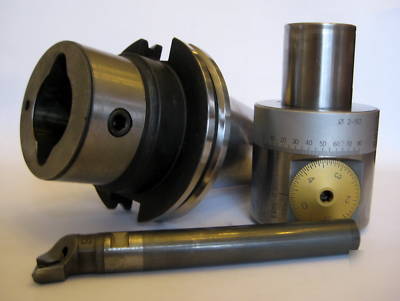

Kaiser boring head & cat 50 toolholder 112.107 with bar
* 1 Kaiser Precision Boring Head: 112.107, with Insert Holder
* Boring Range: 2mm (.078") - 50mm (1.968")

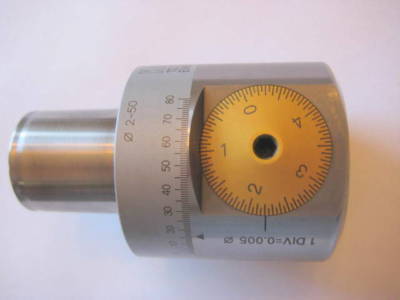

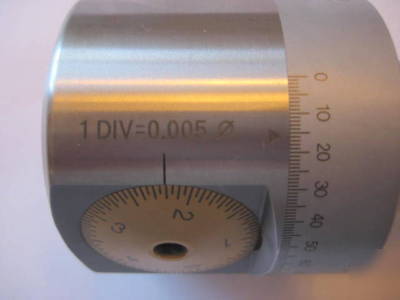

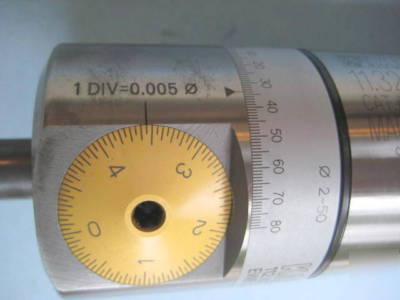

* Boring head has .005mm (.00019") graduation

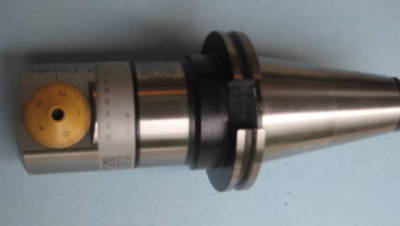

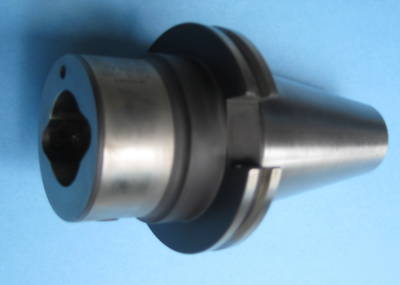

* 1 Kaiser Cat 50 Tool Holder 11.326.664
* Part # 615.227 with E32 Head
* Has Maximum Bore Depth of 4.00" (100mm)
OVER $3,000 Worth of Tooling!!!
PRECISION BORING HEADS SERIES 112
Boring Range .078 -1.968 (2mm-50mm)
Kaiser 112 boring heads are designed for precision production boring on machining centers, jig mills, boring mills,
transfer machines and high speed milling machines. Their fully enclosed, compact and rugged design allows reliable
operation, even under extreme cutting conditions.
The Kaiser 112 heads feature highly accurate and smooth micrometer adjustment precision. Head is available
with metric graduations (0.005mm on diameter) easily read by large dials. The wide space between graduations
allows diameter corrections of .0001 and finer. All tool carrier movement is strictly radial, making length corrections
required on angular mounted boring tools unnecessary.
The locking system prevents any diameter shift under locking action forces and maintains diameter under all cutting
conditions, assuring of the highest repeatability.
optimum tool selection for nearly all bore diameters and depths.
Through spindle coolant capability is standard on all 112 heads.
The series 112 heads also feature a telescopic adjustment of boring bars into the head, allowing unrestricted setting
This tool is in EXCELLENT Condition!!!
