Agastat tyco 120V 60HZ time delay relay 7022ABT
AGASTAT TYCO 120V 60Hz Time Delay Relay 7022ABT

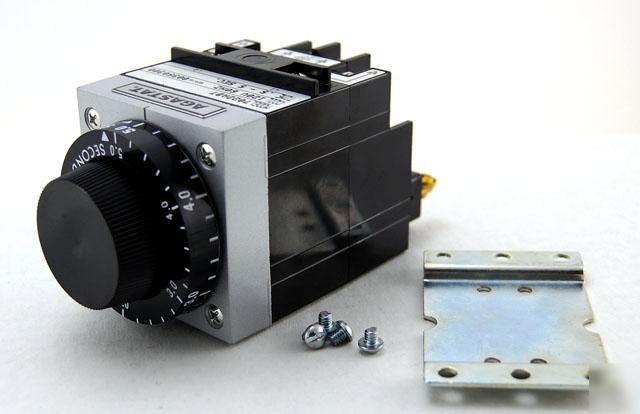

This is a AGASTAT/TYCO 120V 60Hz time delay relay Part Number: 7022ABT
* 7000 Electropneumatic Timing Series
* Input Voltage = 110 VAC, 120 VAC
* Contact Rating = 10A @ 240 VAC
* Mounting Options = Panel Mount
* Termination Type = Screw Terminal
* Manufacturer: AGASTAT / TYCO
* Description: 120V 60Hz time delay relay
* Input Voltage (VAC) = 110, 120
* Contact Rating: 10A @ 240 VAC
* Series: 7000 Electropneumatic Timing - Industrial
* Mode of Operation: Off-Delay
* Delay Time: 0.5 seconds to 5 seconds
* Approved Standards: CE Approved, CSA Certified, FM Approved, UL Listed
* Approx. Dimensions (L x W x H) (mm [in]): 114.80 x 65.30 x 71.90 [4.523 x 2.572 x 2.832]
* Contact Arrangement: 2 Form C, DPDT, 2 C/O
* Multiple Timing Ranges: Without
* RoHS/ELV Compliance: Not ELV/RoHS compliant
* Lead Free Solder Processes: Not relevant for lead free process
* Temperature Range ( C): -30 +75
