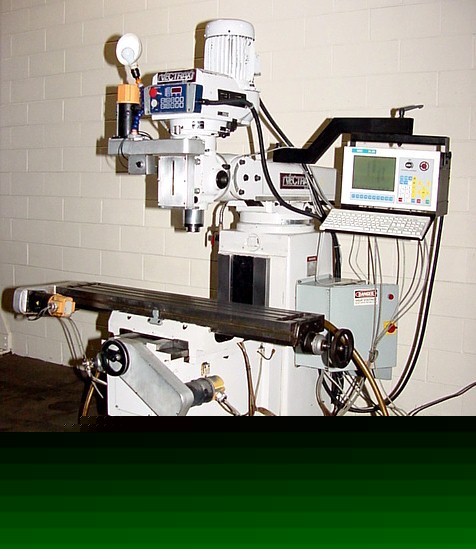

2003 msc-vectrax 5 hp cnc vertical mill w/centroid M15
2003 MSC-VECTRAX 5 HP CNC VERTICAL MILL w/CENTROID M15
TABLE WORKING SURFACE ................... 10" x 54"
NUMBER OF T-SLOTS ....................... 3
LONGITUDINAL TABLE RANGE(X) ............. 31.75"
CROSS SADDLE RANGE (Y) .................. 16.25"
VERTICAL, QUILL RANGE(Z) ................ 4.4"
KNEE .................................... 16"
MAX/MIN DIST SPINDLE NOSE TO TABLE ...... 18-3/4"
RAM TRAVEL .............................. 12"
HEAD TILT, LEFT AND RIGHT ............... 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ...... 45 DEGREES
VARIABLE SPINDLE SPEED RANGE ............ 50 - 5000 RPM
SPINDLE TAPER ........................... R-8
APPROXIMATE WEIGHT ...................... 3,500 LBS.
- CENTROID M15 3-AXIS CNC CONTROL WITH LCD DISPLAY,
32 BIT PC BASED CONTROL, 10.2 GIG HARD DRIVE,
SIMULTANEOUS CIRCULAR OR LINEAR INTERPOLATION,
ABSOLUTE AND INCREMENTAL PROGRAMMING, TEACH,
PART GRAPHICS, MATHEMATICAL HELP MODE, CANNED
CYCLES FOR MACHINING ARCS, DIAGONALS, CIRCLES, BOLT HOLE
PATTERNS, POCKET MILLING AND MORE & ENGLISH/METRIC CONVERSION.
EIA FANUC G-STYLE PROGRAMMING & CONVERSATIONAL
- THREE-AXIS DIGITAL READOUT DURING MANUAL OPERATIONS
- DC SERVO MOTORS ON ALL THREE AXES - X, Y, AND Z
- TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL OPERATION
- PERFECT FOR TOOLROOM OR PROTO-TYPE WORK
- 5 HORSE POWER SPINDLE INVERTER DRIVE & MOTOR
