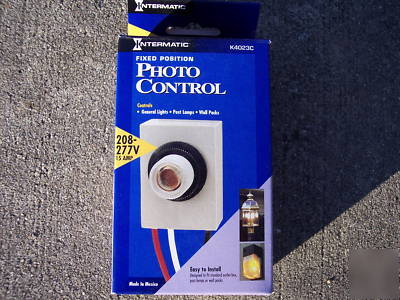

New 4 intermatic K4023C, fixed mount photocell 208-277V
Heavy Duty Wired-in with Built in Delay
Snap Switch with Built-in Delay
UL Recognized (E42722), CSA Certified (LR38068)
* Designed for outdoor use, these commercial grade photocontrols (except Intermatic LC2000) feature a built-in delay to prevent false cycling due to car headlights, lightning, etc. UL Listed and CSA Certified (except Intermatic K4141).
* These fixed-position, thermal-type controls mount in standard 1/2" knockout or 11/16" hole in lamppost or lighting fixture to control incandescent, fluorescent, and HID lighting.
* Cadmium sulfide photocell and sonic welded polycarbonate case and lens seal out moisture. Dual temperature-compensating bimetal and metal film resistors ensure long life and reliable operation. UL Listed.
Heavy Duty Wired In Photocontrol, Voltage Rating 208 to 277 Volts, 50/60 Hz, Maximum Power 1800/4150 Watts, Maximum Ballast Current 8.3 Amperes, Maximum Incandescent Current 15 Amperes, Temperature Range -40 to 158 Degrees Fahrenheit, Foot Candles Off 3 to 15, Foot Candles On 1 to 5, Length 1 13/16 Inches, Depth 13/16 Inches, Width 1 5/16 Inches, Mounts Into Standard 1/2 Inch Knockout Or 11/16 Inch Hole In Lamp Post Or Lighting Fixture
