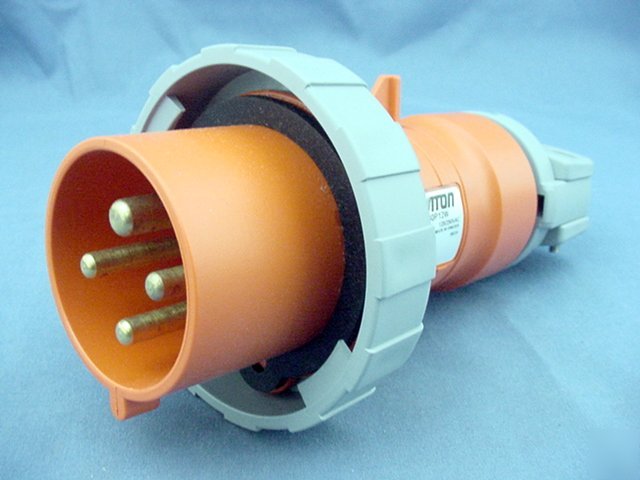

Leviton pin & sleeve 30A 125/250V plug 430P12W
Leviton Pin & Sleeve 30A 125/250V Plug 430P12W
Leviton 430P12W watertight pin and sleeve plug. Industrial Grade, IEC 309, 3-pole, 4-wire, grounding, rated 30A 125/250VAC. Features include:
* Clean brass pin construction resists corrosion, provides superior contact and low electrical resistance
* Pins are designed for manageable insertion/withdrawal force
* Rounded pin tips reduce insertion force and decrease wear on the contact surface area
* Solid brass terminal screws provide maximum clamping pressure
* Locking ring secures plug to connector or receptacle
* Watertight Chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
* External cord clamp made of tough impact-resistant Valox 357 accomodates a wide variety of cord sizes and protects terminals from strain
* Large diameter combination head terminal screws are aligned on a single plane for easier access
* Internal hinged cord clamp adds strain relief and swings aside when wiring terminals
* Ground, neutral and phase terminals are clearly identified by color coding or letters and numbering on both front & back side
