Gigatronics 8542B power meter dual input
1755 E. Bayshore Road Suite 12A
Gigatronics 8542B Asset #16699
THIS UNIT IS SOLD WITH NO WARRANTY.
The following is the information we have on the unit:
Unit has been checked and is known to need repair. Unit fails to power up when power sensor cable is attached.

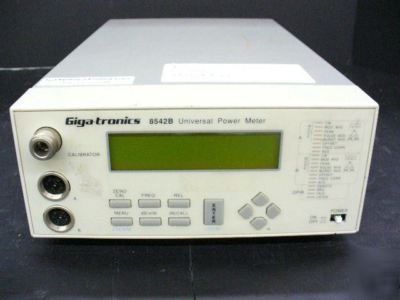

The Gigatronics 8542B is a Dual Input Power Meter
The Gigatronics 8542B dual channel power meter features GPIB, a frequency range of 10 MHz - 40 GHz (depending on sensor), a Min/Max Display Resolution of 0.001 dB - 1 dB, and a Min/Max Power of 0.001 uW - 50.119 W.
IFR/Gigatronics 8542B Features
* 10 MHz to 40 GHz (sensor dependent)
* -70 dBm to +47 dBm (sensor dependent)
* CW, Peak and MAP/PAP/BAP measurement mode
* Can store up to 20 front panel settings
* Built-in calibrator (50 MHz)
