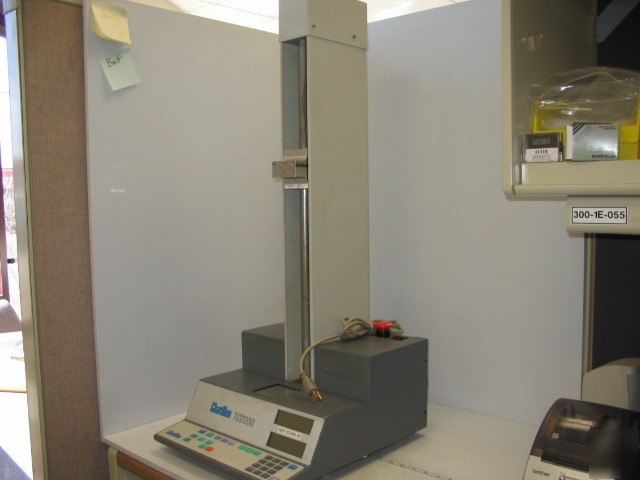

Chatillon digital force tester TCD200 tcd-200
Chatillon Digital Force Tester TCD200 TCD-200
* The TCD200 Series digital test stand features bi-directional RS232 communications that support data exchange and remote control using a personal computer. Force and de ection data may be transmitted or requested and used with our NEXYGEN FM Series software for comprehensive force measurement and material testing analysis. The TCD200 features a ball screw drive with dual column alignment for precise linear motion. Dynamic braking provides positive control of the motor. Programming of test speed, high and low de ection setpoints and cycling are performed using the membrane-style keypad. "MIN" and "MAX" speed functions are also provided for easy setup. Two LCD displays indicate speed and de ection values along with status indicators of the programmed functions and units of measurement (inches or millimeters).
* Capacity: 225 lbf (1000 N)
* Outputs: RS232C Serial Data Communications
* Supply Voltage: 115 VDC or 220 VDC
Comes with two extra never used keypads
