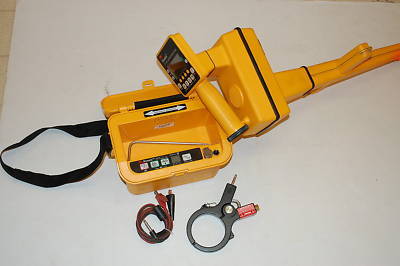

Dynatel 2273M-id pipe cable fault locator
A new feature exclusive to the 3M Dynatel 2273M-iD Cable/Pipe/Fault and Marker Locator is the ability to write, read and lock programmed information into the new 3M 1400 Series EMS iD Ball Markers. Information such as a pre-programmed unique identification number, facility data, owner information, application type, placement date and other details from up to 100 ID markers can all be read, stored with date/time stamp and transmitted back to your PC through a standard RS232 serial port for enhanced resource management.
The 3M Dynatel 2273M-iD Cable/Pipe and Fault Locators are microprocessor-based systems that incorporate advanced digital signal processing techniques to quickly and efficiently locate conductor or sheath (earth return) faults and trace the path of underground cables and pipes, both copper and fiber optic (with metallic tracer wire). They provide accurate cable or Sonde depth measurements, giving a digital readout in inches, feet and inches, or centimeters (user-selectable). Lightweight, compact and well balanced, these cable/pipe and fault locators allow you to accurately and easily:
2. Measure cable or Sonde depth with the push of a button
3. Measure signal current in the cable
4. Pin-point conductor or sheath (earth return) faults and cable breaks
5. Discriminate between light and heavy faults
6. Identify cable and cable pairs
7. Tone shorts and grounds in aerial cable
8. Identify cable pairs through wet sections
9. Locate energized power cable
Designed to be more accurate, faster and more integrated than any other locator on the market, the 3M Dynatel 2273M-iD Cable/Pipe/Fault and Marker Locators can perform these additional functions:
1. Pin-point the location and estimate the depth of all existing models of properly installed underground passive EMS markers
2. Direct depth reading of ID markers
3. Locate two different marker frequencies simultaneously
4. Trace a cable path while simultaneously finding buried markers along the way
