405NM laser module housing with glass lens knurl adjust
This is a NEW Laser Module Housing, Including 405nm Glass Lens.
* The long awaited housing to hold the NEW 405-G-2 lens is HERE !
* The 405-G-2 has a better, multilayer coating. The 405-G-1 has a single coating.
* This one has a nice Knurled front adjustment for the lens assembly, and INCLUDES the lens!
* 10.5 mm diameter X 19 mm long.
* Ready for you to install a 5.6 mm diameter 405nm laser diode of your choice. (We sell those at powers up to 500mW pulsed/ pushed). No laser diode included.
* A special design just for our 405 nm Glass Lens. Now available as a complete assembly.
* Add your diode and driver, and you are done!
* Lens has very short focal length, 0.6 NA. AR Coated! ~ 92% efficient lens.
* Adjustable Focus by hand, no tool needed.
* Please see the data sheet for THE LENS here: 405 nm Glass Collimating Lens DATA SHEET
Lens Made in USA. Housing made in Taiwan by an ISO 9001 manufacturer. Assembled in USA.We are not a trading company, we only sell LASERS and related components.

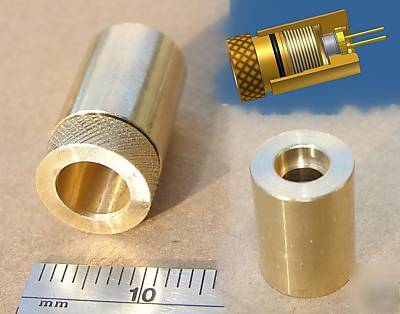

Easy to use, just press fit for diode into the rear. Split View Photo shows item to the left, a 3-D cut away internal design image to the top right, and the rear with 5.6mm diameter hole to the bottom right.
