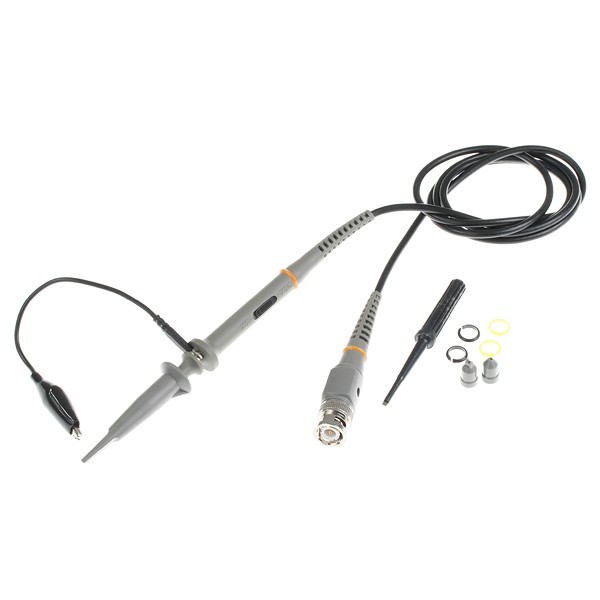

20MHz Channel Digital Oscilloscope Scope Clip Probe
To compensate the 20MHz probe, connect it to a 1kHz rectangle signal source (which most oscilloscopes provide) and adjust it with the included screwdriver until you can see a clear rectangle signal on your measurement screen.
* Bandwidth: 1X: DC-6MHz, 10X: DC-20MHz
* Input Capacitance: 1X: 85pF - 115pF, 10X: 18.5pF - 22.5pF
* Compensation Range: 25pF - 45pF
* Working Voltage:1X: <200V DC + AC Peak, 10X: <200V DC + AC Peak
