Dwyer magnehelic 605-1 indicating transmitter gauge

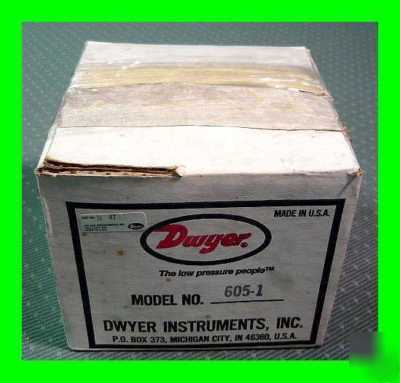

Selling as pictured, ONE (1) Dwyer Magnehelic 605-1 Indicating Transmitter. This item appears to be new in its original box. The manufacturer indicates this unit specifications are: "maximum pressure 25 psig; maximum temperature 120 F; minimum temperature 20 F; electrical accuracy 2%; mechanical accuracy 2%; 1/8 inch female NPT process connections; and 4 inch dial face with 5 inch outside diameter." According to the manufacturer, "The Model 605-1 simultaneously provides local indication on a large, easily read analog scale while also converting that pressure into a standards two-wire, 4-20 mA signal. The series 605 models add electrical conditioning and amplification of a resistance change produced by a silicon strain gage which is cemented to the range spring. This resistance change is the result of the slight flexing which results from spring deflection as pressure is applied to the diaphragm which is directly linked to the spring." Item listed from a recently closed business.
