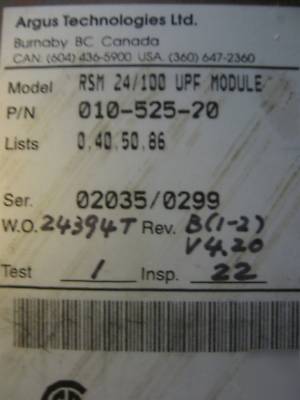

Argus rsm 24/100 upf rectifier module p.n. 010-525-20

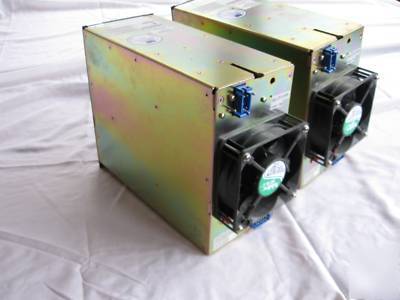

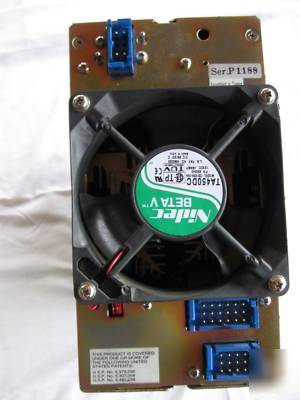

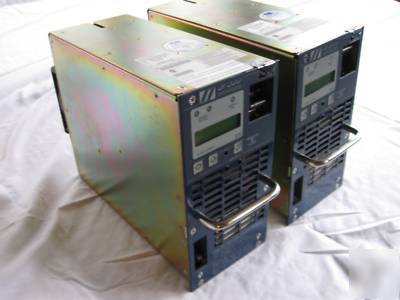

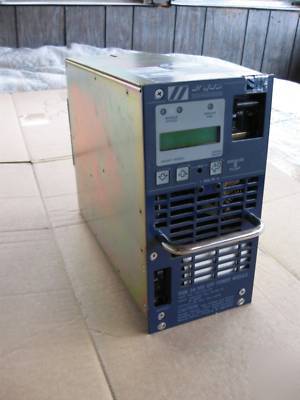

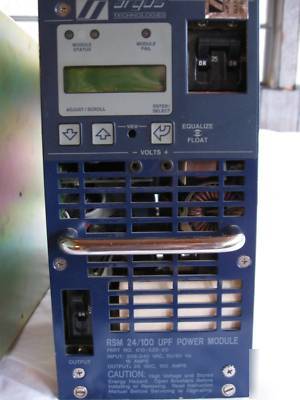

This is a used Argus RSM 24/100 UPF (Unity Power Factor) P.N. 010-525-20 rectifier module that has been in storage for 9 years. The display handle is slightly bent.
This unit was sent back to the supporting factory (Alpha Technologies Service, Inc) in Washington State for repairs and testing to confirm the operational integrity of this rectifier module as of April 29, 2010.
This Argus RSM series Rectifier Module was one of the latest units manufactured before they were discontinued. They are no longer made and this Unity Power Factor module is extremely difficult to locate. This unit is compatible and can be run with the earlier Argus RSM 24/100 P.N. 010-029-20 Non-Unity Power Factor modules.
SPECIFICATIONS FOR ARGUS TECHNOLOGIES SWITCH MODE RECTIFIER MODEL RSM 24/100:
Regulation +/- 0.02% Line and load (static, zero slope)
<=1% deviation for 50% to 100% load step (dynamic)
Temp. Stability 100 ppm/degree C over the operating range
Response Time 2 msec. to 0.1% of output for 50% to 100% load step
Noise Less than 23 dBrnc (Voice Band)
EMI The unit meets requirements of FCC Rules
Breaker Rating 110 Amp, 5000 Amp interrupting capacity at 65 VDC
Voltage 184 VAC - 264 VAC (47 Hz - 63 Hz)
Current 13 Amps (240 VAC Nominal) @ 2800 Watts output power
14 Amps (240 VAC Nominal) @ 3000 Watts output power
15 Amps (208 VAC Nominal) @ 2800 Watts output power
16 Amps (208 VAC Nominal) @ 3000 Watts output power
Power Factor >0.99 for 40% - 100% load
T.I.F. Less than 100 at 100% load (current)
Efficiency 87% minimum 50% - 100% load
Hold-Over Time 30ms from loss of AC line
Source Impedance 5% Inductive of Resistive
Soft Start Approximately 10% per second
Start Delay 0 - 256 sec. (10 second increments)
Input Transient Meets Ieee/ANSI C62.41 Category B
Recommended 25 Amps or Greater (240 VDC)
Breaker Rating 25 Amp, 10,000 amp interrupting capacity at 250 VAC
