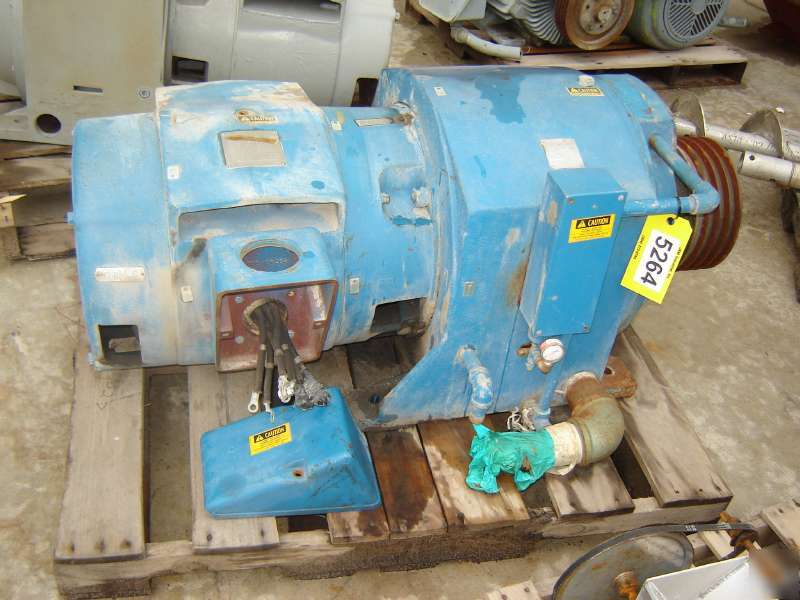

100 hp eaton eddy current drive gear motor
100 HP EATON EDDY CURRENT DRIVE GEAR MOTOR
INDUCTION MOTOR MODEL #: 40643651-0067, S/N-NX-56238. 230/460 VOLT, 234/117 AMPS, 60 Hz, 3 PHASE. 1760 RPM, 365TDZ FRAME. 1.15 SERVICE FACTOR. EDDY CURRENT DRIVE GEAR REDUCER SECTION MODEL M2-100043-2124, S/N-46983-01B-1 RATED AT 100 HP AND MAX RPM 1670. REQUIRES 8 GALLONS PER MINUTE. 45 VOLTS DC, 3.75 OHMS @ 20 DEGREES C. AMPS HOT 7.84. DYNAMACTIC EDDY CURRENT DRIVE. 4 GROOVE SHIEVE APPROXIMATELY 11.5" O.D. APPROXIMATE WEIGHT 1750 LBS.
