Hp/agilent h-p 435A power meter

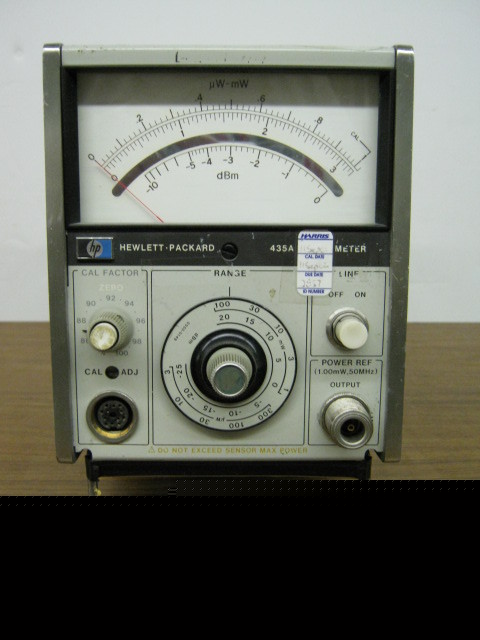

HP/Agilent H-P 435A Power Meter
The 435A Power Meter and a compatible power sensor (sold separately) form a power measurement system. The system power level range, frequency response, and load impedance are dependent on the power system. The meter has a frequency range (dependent on power sensor) of 100kHz to 18GHz. The 435A meter is calibrated in watts and dBm. The accuracy is 1% of full scale on all ranges. This accuracy is ensured by the following: an internal automatic zeroing circuit which removes error due to the ambient temperature output of the power sensing device, a calibration factor adjustment which accounts for error due to the frequency response of the power sensing device, and a internal calibration reference which has an output of 1 mW ( 0.7%).
Option 001 = Rechargeable Battery Installed, provides up to 16 hours of continuous operation Option 002 = Input Connector placed on rear panel in parallel with front Option 003 = Input Connector and Reference Oscillator on rear panel only Option 009 = 10-ft Cable for Power Sensor Option 010 = 20-ft Cable for Power Sensor Option 011 = 50-ft Cable for Power Sensor Option 012 = 100-ft Cable for Power Sensor Option 013 = 200-ft Cable for Power Sensor
