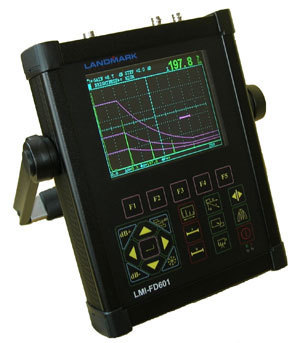

Handheld, portable, digital ultrasonic flaw detector
Stand alone unit to free engineer's hands.
High-speed capture, extremely low noise.
Automated calibration of transducer zero-point, angels, front edge and material velocity
Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, )
Automated switch three staff gauges ((Depth d, level p, and distances)
Make and use DAC and AVG to evaluate the echo with ease. Curve can be modified and compensated
Ten independent setup. Any criterion can be input freely. Work on site without test block
Onboard memory: 300 A graphs and 30,000 thickness values
Software can be updated online
Li battery, continuous working hours: 7 hours
(Unit can work with power adaptor as well)
Lock and unlock function of system parameters
Measuring Range: 2.5 10,000 mm
Vertical Linearity Error: 3%
Horizontal Linearity Error: 0.2%
Material Velocity: 1,000 13,000 m/s
Measurement Mode: Single, Dual, Thur
Pulse Displacement: -20 to +3,400 s
Operating Temperature: - 20 C to 50 C
One year warranty. Battery and transducers are not covered.
Main unit with rechargeable battery
