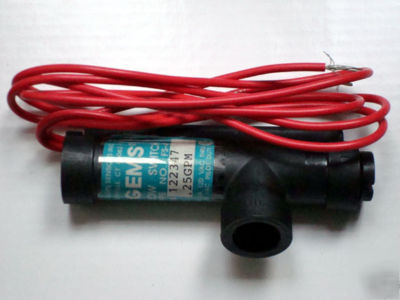

Gems sensors fs-4 (pn# 122347) flow switch 0.25GPM
GEMS SENSORS FS-4 FLOW SWITCH 0.25GPM
FS-4 Series - Low Cost, Molded Plastic Construction.
Molded body design features uniform wall thickness for more reliable performance!
The FS-4 Series makes flow protection economical for a broad range of industrial applications such as welders, lubrication systems, medical sterilizers and laundry chemicals dispensing.
122347 - FS-4 Housing and Piston, Normally Closed, SPST Switch 0.25 GPM
SPST: 20 VA (120-240 VAC) 18 AWG, Zip Cord, 24-26" Long
- SPDT: 20 VA (240 VAC Max) 18 AWG, PVC 24" long leads
Inlet/Outlet ports: 9/16" -18 UNF-2B Thread
Operating Pressure Max: 250 PSIG (17.24 bar) @ 70 F (21 C)
