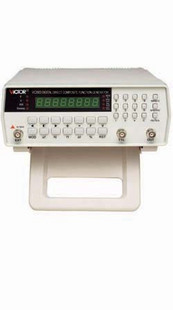

Function generator 1HZ~3MHZ sine square wave VC2003
1, highly integrated, fully digital control, digital display;
2, frequency direct input, simple operation;
3, the digital direct synthesis technique, waveform distortion, high stability;
4, synchronous TTL level signal output can be used for digital circuit clock signal;
5, built-in AM modems, AM signal generator can output AM signal;
6, with an external AM modulation signal port;
7, linear, logarithmic frequency sweep function, to adapt to a variety of wide and narrow range of detection;
8, the standard sine wave output, can be used as a standard signal generator.
Output frequency range: 1Hz ~ 3MHz
Frequency Accuracy: (5 10-5 +10 mHz +1)
Output waveform: Sine, TTL square-wave
Function Output Impedance: 50
Within the AM frequency: 400Hz, 1kHz
Within the amplitude modulation depth: 1% ~ 100%
External modulation signal frequency response: 100Hz ~ 100kHz
External Modulation Input Impedance: 600
Frequency scanning time: 0.02s ~ 5s
Outside the frequency measurement sensitivity: 250mVrms
