Finishmaster 100 perforating scoring and slitting

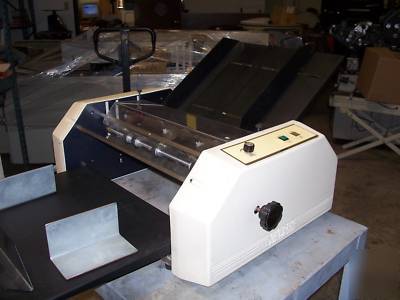

Graphic Whizard FinishMaster 100 Perforating Scoring and Slitting Machine
Tabletop design makes the FinishMaster 100 (FM100) portable and easy to set up. Our feeder design ensures consistent and true feeding throughout the job. The accessory holders, each individually adjustable, allow easy blade changes to minimize set-up time and effort. The anvil-style perforating provides a flat, burr-free finish capable of being fed through any subsequent finishing equipment with ease. And with a maximum production rate of 10,000 sheets per hour, the "100" makes short work of your perf/score/slit needs. Don't forget, the FinishMaster 100 can be upgraded at any time to the FM 150. Perforate, score and slit at the entrance of the machine not on an exit shaft. Blades change in seconds without removing any shafts or the blade mount hub. Anvil-style perf provides a burr-free, flat finish. Individually adjust the depth of each perf / score / slit independently. the friction fed model uses a top feeding system that virtually eliminates scuffing and allows for the machine to be loaded while running. For delicate or glossy stocks where scuffing must be avoided, the horizontal air fed machine is recommended. The friction fed system can be upgraded, on site, to an air fed model by a qualified technician.
* Variable speed, up to 10,000 standard-size sheets per hour
* Perforating options: 2,4,6,8,12,16 TPI
* MICROPERF options: 42 or 72 TPI
* Scoring options: wide (standard), narrow or double
* Ability to control depth of each perf/score/slit independently
* Optional conveyor outfeed delivery
* Electrical: 115V/60Hz/15A or 230V/50Hz/15A
* Speed: 10,000 sph variable
* Max. stock size: 18 x 18 (45.7cm x 45.7cm)
* Min. stock size: 3 W x 5 L (7.6cm x 12.7cm)
* Stock weight: 12# - 12 point(45 - 300 gsm)
* Perf blade options: 2, 4, 6, 8, 12 teeth per inch
* Microperf options: 42 or 72 teeth per inch
* Scoring options: Standard wide or narrow
* Conveyor outfeed: Optional
* Drive unit with reverse head: N/A
