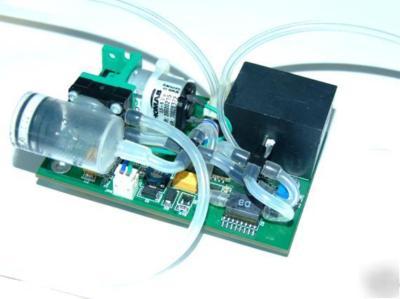

ETCO2 CO2 module model C002 for CO2 monitoring systems
The host sends commands and receives waveform, breath parameters and command responses on two +5.0V asynchronous serial data lines (TTL or RS232).
Best performance price ratio in the world. The price is clearly lower than other similar module and the performance is better than them.
Better stability. Better design can wipe off the excursion from temperature, pressure and inconsistent component.
Better self- protected ability. It allows wrong power supply, humidity in the pipeline.
Better policy of after service. Manufacturer promises that the module can be replaced by a new one if it is not damaged by man-made in one year.
Longer life. Using long-life IR source (100 thousand hours life).
Proprietary High Efficiency IR Source
2 mmHg @ < 5.0% CO2 (at BTPS) < 10% of reading @ >5.0% CO2 (at BTPS)
2-180 BPM (no water trap connected) 2-120 BPM (water trap connected)
Time and temperature based, as well ason-demand
Highly configurable serial digital interface(TTL/RS232), CO2 and barometric waveform data, Breath Detect Algorithm data
On-board aspiration pump and flow controller Configurable aspiration flows to 250 ml/min ( 10%)
400mW (typical with pump on) 1500mW (extreme status)
(Dependent Upon Implementation, Pneumatics and Water Separation Technique)
