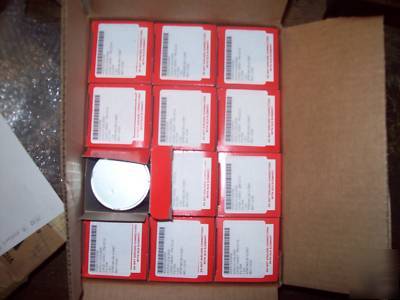

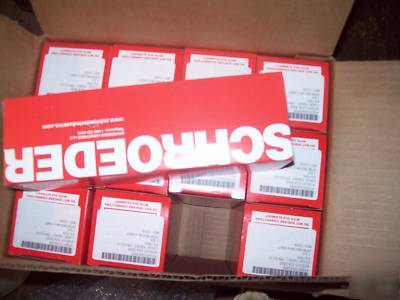

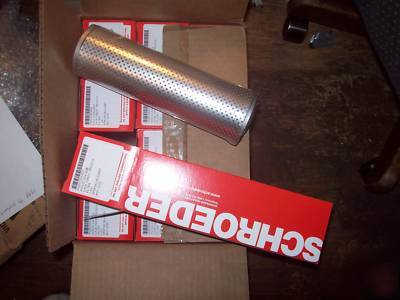

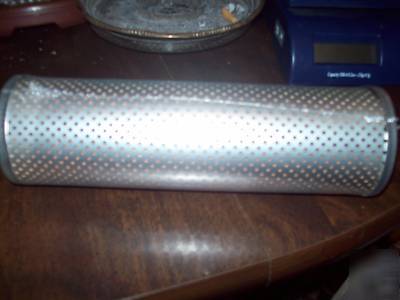

12 shroeder CC10/9C10 hydraulic fluid filter units.
NAME ITEM NAME FILTER ELEMENT,FLUID
ABPM BODY DIAMETER 2.875 INCHES NOMINAL
ADAS BODY INSIDE DIAMETER ANY ACCEPTABLE
ADNH FILTRATION RATING IN MICRONS 10.0 NOMINAL
ADNK FLOW DIRECTION OUTSIDE IN
ADNP DROP PRESSURE 4.0 POUNDS PER SQUARE INCH
ADNQ DIFFERENTIAL PRESSURE 100.0 POUNDS PER SQUARE INCH
AZKQ TEMP RATING 250.0 DEG FAHRENHEIT MAXIMUM
AZTL BODY OVERALL LENGTH 9.500 INCHES NOMINAL
CRXW FILTERING MEDIA DESIGN PLEATED SINGLE FILTERING MEDIA RESPONSE
CXZX FILTERING SYSTEM FOR WHICH DESIGNED FULL FLOW
MATT MATERIAL CELLULOSE FILTERING MEDIUM AND RESIN SYNTHETIC
MEDA MEDIA FOR WHICH DESIGNED FUEL/OIL, HYDROCARBON
PRPY PROPRIETARY CHARACTERISTICS MRCS
STYL STYLE DESIGNATOR A6 CYLINDRICAL W/OUT CONTAINER
