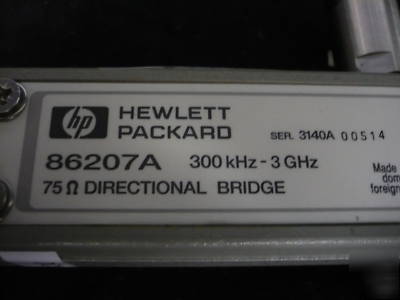

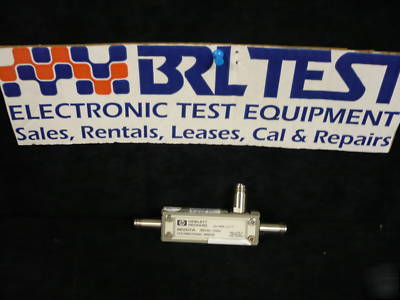

> Hp 86207A rf bridge, 300 khz - 3 ghz, 75 ohm
Hp 86207A rf bridge, 300 khz - 3 ghz, 75 ohm
The Agilent 86207A high directivity 75 ohm RF bridge offers unparalleled performance in a variety of general-purpose applications. It is ideal for accurate reflection measurements and signal leveling applications.
* Coupling factor: 16 dB + 0.15 dB/GHz
* Directivity: 30 dB to 0.3 MHz, 40 dB to 1.3 GHz, 35 dB to 2 GHz, 30 dB to 3 GHz
* Return loss: 23 dB to 1.3 GHz, 18 dB to 3 GHz
* Insertion loss: 1.5 dB + 0.1 dB/GHz
