> Fluke 123 scopemeter 123/003 20MHZ scope meter 123S

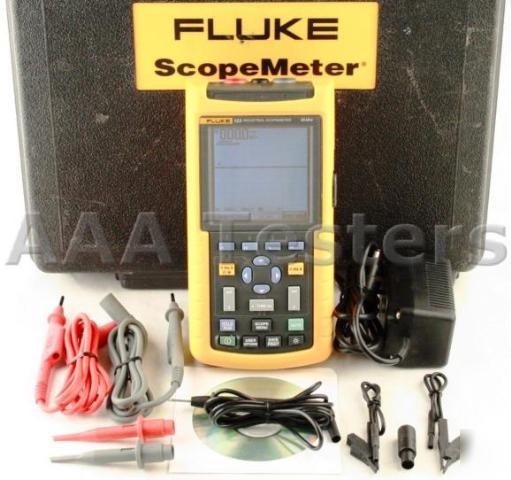

Fluke 123 scopemeter 123/003 20MHZ scope meter 123S
* Fluke STL120 Sheilded Test Lead (1 Red - 1 Grey)
* Fluke HC120 Hook Clip (1 Red - 1 Grey)
* Fluke Grand Banana - Alliagtor
* Flukeview Software For ScopeMeter SW90W
Fluke 123 Industrial ScopeMeter, 25MS/s Dual-Channel 20MHz HandHeld Oscilloscope
Hard Carrying Case & Full Accessories Included!
The compact ScopeMeter 123 is the rugged solution for industrial troubleshooting and installation applications. It s a truly integrated test tool, with oscilloscope, multimeter and paperless recorder in one affordable, easy-to-use instrument. Find fast answers to problems in machinery, instrumentation, control and power systems.
* Fluke 123: 20 MHz Bandwidth, 25 MS/s
* Two Channels, Scope or DMM mode
* NTSC, PAL, SECAM video triggering
* True-RMS DMM with 5000 count / 0.5% accuracy
* 2 Channel TrendPlot for recording trends and intermittents
* Optical RS-232 port for connection to PC's
* Connect-And-View allows for quick hands-off operation
* Improved Battery Charge Process
* Lightweight (2.5 lb./1.2 kg.)
Vdc, Vac, Vac+Vdc, Ohms,Continuity , Diode-test
Current, C, F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset
Automatic vertical scaling and time compression.
Display the actual, MIN, MAX and AVG reading.
Connect-and-View , Free Run, Single Shot, Edge, Video, External
