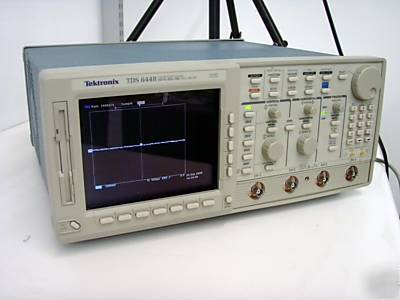

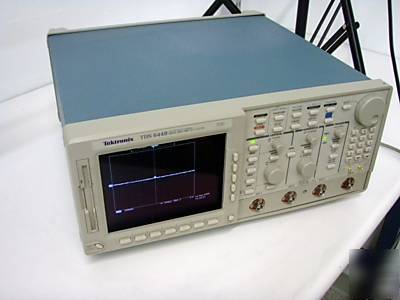

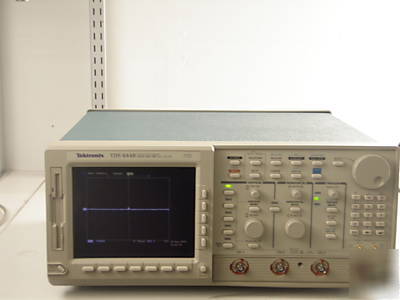

Tektronix TDS644B oscilloscope, digital: 500MHZ
Tektronix TDS644B Oscilloscope, Digital: 500MHz

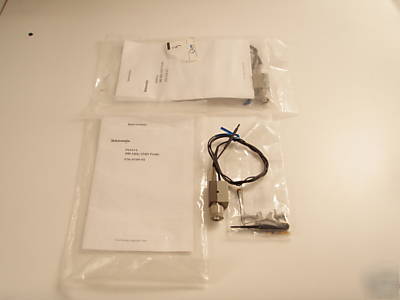

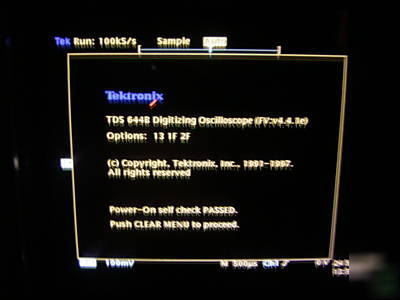

With Options 13 , 1F , 2F & Two P6563A Probes!!!!!!
Tektronix TDS644B Oscilloscope, Digital: 500MHz,2.5GSa/s,4ch (Stand alone)
The Tektronix TDS644B oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS644B oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the TDS644B
Simultaneous Maximum Sampling Rate/ch
One ch. only max. sampling rate
