New ir heating bga rework station for bgas, qfps, etc.

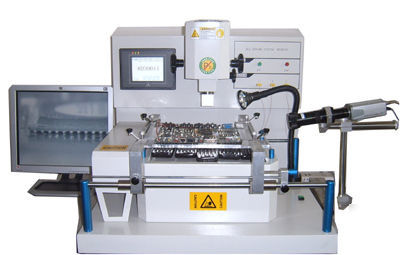

IR heating BGA Rework Station for BGAs, QFPs, etc. MDR500
1.Use the CCD machine vision systems to observe the melting and recycling process of BGA
2. Intelligent heating wire, when the fan does not turn, the hot wire is not electrify
3. COM interfaces, and connect to computer, that to achieve the functions of upmarket rework machine.
4. A wealth of software features: The interface is simple and friendly, set, modify, save the parameters, parameter set no limit ; temperature curve for testing, analysis, print, save; automatic tracking heating process, heating process curve of automatic drawing; temperature setting, temperature error correction; password locking mechanism, conditions permit mechanism.
5. Three independent heating zones, suitable for lead-free process.
6. The first and the second heating zone heaters are with the excellent heating material to generate high temperature gentle breeze, the third heating area adopts the far-infrared heating plate to preheated that prevent the PCB plate deformation;
7.6 Duan-zone control, imitate the effect of reflow soldering machines completely.
8. The the heater of first heating zone can be adjust up and down , forward and backward, easy to operate;
9.Use the Large flow Constant Fan to cool down the PCB board after heating,that can prevent the deformation of PCB board and to ensure the welding effect.
10. Have a voice prompt function after BGA demolition, welding;
11. Handheld vacuum nozzle suck BGA, convenient, reliable, and durable;
12. with a special card, for a variety of laptop motherboard;
13. Hot air nozzle is equipped with a variety of sizes, or custom-made according to special requirements;
14. With PLC, man-machine interface control.
l Uses the CCD vision system, carries on the observation to the BGA tin ball in the melting backflow process.
l 0.76 millimeter tin ball and hair silk observation effect.
l High power micro lens. From 170 millimeters, 0.76 millimeter tin ball reach as high as 5mm.
l At area of BGA Hot wind heats up and down,
mimic the effect of hot wind reflow station
l I-R pre-heat of big area, Prevent PCB disformation
l Chinese English test, Aut-following heating
l profile test, analysis , print and pass word lock,
l conditional permission system
l The machine have a control-screen, the machine can also circulate without computer.
l The control-screen can edit view parameter.
l simple operation, all workings set in the computer
l PCB and splints both moves along X.Y, Quickly and adjust slightly
l sizes nozzle and sub-splints for choice
PLC With a COM port, External connection
single phase 1 110V/220V OR 3 Phase 3 380V
Power Supply:single phase 110V/220V OR 3 phase 380V
If you need video information, please contact us!
