New 3W led driver for luxeon white green blue lights

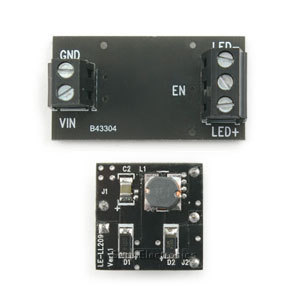

3 W LED Driver for Luxeon White Green Blue
* Maximum output current: 700mA
* Maximum Load: 1-4pcs Luxeon LEDs, no less than 3 Watt each.
* Preset Current: 700mA, it may vary from 650-710mA.
* Current Ripple: 14mA RMS, 76mA p-p.
* Maximum Input Voltage: 15V DC.
* Suggested Input Voltage: 6-15V DC.
* Efficiency: 78% @ 15V input, 3*3W Luxeon LEDs in serial connection.
Suggested connection is shown in Figure 2.
Negative (LED -) output should be connected to GND or the housing of your instrument.
