Meguro msw-7124 am-fm radio band digimarscope

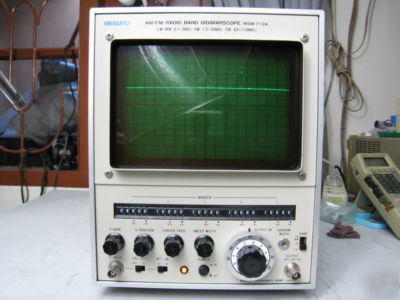

Template By Froo! MEGURO MSW-7124 AM-FM Radio Band Digimarscope
* Covers the LW, MW, SW and FM bands
* Narrow and wide sweep functions
0.1 to 3MHz / 1.5 to 30MHz / 63 to 110MHz
0.2 to 2.8MHz / 2 to 28MHz / 5 to 36MHz
100dB? (0.1Vrms ), Accuracy : 1dB
Within each frequency band, 5points
4digits ( LW, MW, SW ), or 5digits ( FM )
1kHz ( LW, MW ), 10kHz ( SW, FM )
23cm ( 9-inch ) ; electromagnetic deflection
1mV / DIV, variable ; equipped with 20dB attenuator
Approx. 230W 305H 370Dmm 9.5kg
* Option : MO-2951 / Band Splitting Filter
