Hubbell HBL7102C 250V twist-lock plugs lot of 50
Item Title: Twist Lock Insulgrip Plugs Lot
* Wiring Scheme 2-Pole, 2-Wire Non-Grounding
* NEMA Configuration L2-20P
* Cord Dia. .230"-.720" (5.8-18.3)
* Blade Holder Material Natural White Nylon
* Terminal Retainer Material Clear polycarbonate
* Housing Material Black nylon
* Cord Clamp Material Natural (white) nylon
* Terminal Clamp Material Cold rolled steel-nickel-plated
* Terminal Screw Material #8-32 Brass
* Cord Clamp Screw Material Steel-zinc-plated
* Body Holding Screw Material Steel-zinc-plated
* Ratings Molded In or Stamped On
* Catalog No Permanently ink marked on product
* Dielectric Voltage Withstand 2000V minimum
* Current Interrupting Certified for current interrupting at full rated current
* Temperature Rise Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
* Cord Accommodation Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
* Terminal Accommodation 20A #12 AWG
* Terminal Identification Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
* Flammability HB or better per UL 94 or CSA 22.2 No. 0.6
* Operating Temperatures Maximum Continuous 75 C Minimum -40 C (w/o impact)
Product Link: http:// /wiring/section-b-datasheet.asp?FAM=Locking_Devices&PN=HBL7102C

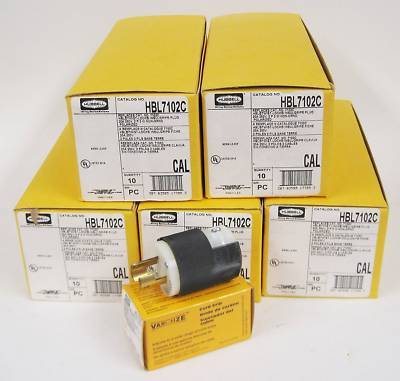

Condition: New in Boxes. Each plug in individual box; 10 boxes per case, 5 cases total.
