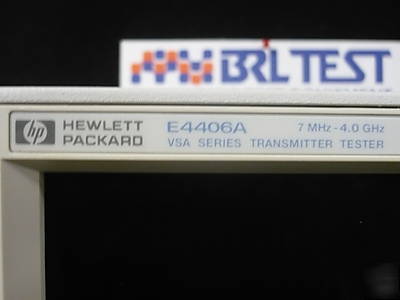

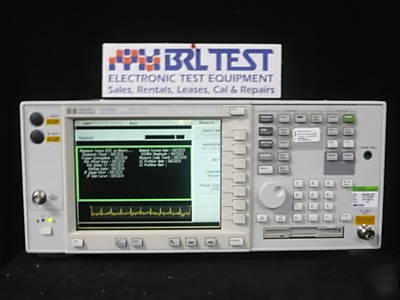

Hp E4406A vsa transmittertester 7 mhz - 4.0 ghz

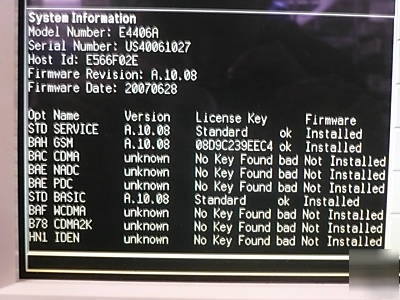

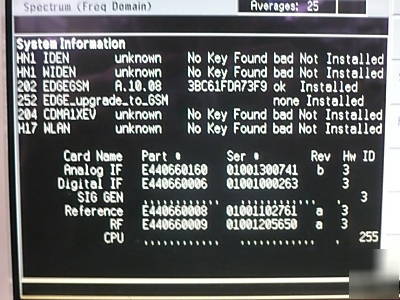

* 202 - EDGE w/ GSM measurement personality
* BAH - GSM measurement personality
* STD - Spectrum (frequency domain) analysis, waveform (time domain) analysis, adjacent channel power (ACP), complimentary cumulative distribution function (CCDF), channel power, occupied bandwidth, and link capability
The E4406A VSA transmitter tester with optional baseband inputs provides the ability to design and develop both baseband and RF components and test them together. The baseband IQ inputs option supports digital demodulation measurements for the EDGE. The E4406A VSA transmitter tester is a full-featured vector signal analyzer suited for base station and mobile handset manufacturing, with additional applications for design and development of wireless equipment. The E4406A VSA offers various power measurements for multiple 2G, 2.5G, 3G, and 3.5G wireless communications formats with powerful one-button standard-based modulation analysis.
Input impedance: unbalanced 50 and 1 M ; balanced 600 and 1 M
Frequency range: 5 Hz to 5 MHz (baseband I or Q inputs)10 Hz to 10 MHz composite I/Q
Frequency setting resolution: 1 Hz
Noise sidebands (phase noise) at 1 kHz: -120 dBc/Hz
Spurious response: < -80dBc
Call BRL Test for all of your test equipment needs
