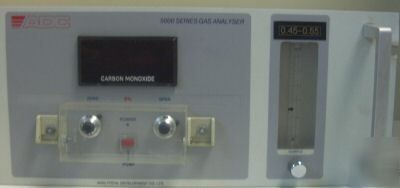

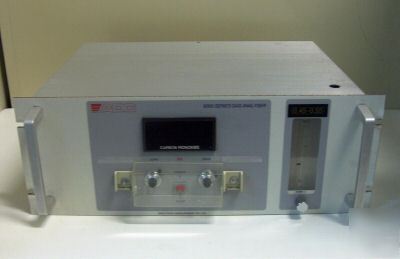

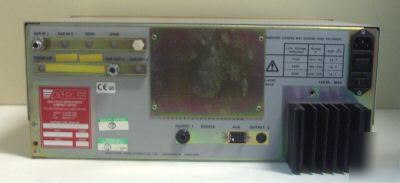

Adc carbon monoxide gas analyzer ADC5300-CM050R-002
ADC CARBON MONOXIDE GAS ANALYZER ADC5300-CM050R-002.
USED ITEM, FROM WORKING ENVIRONMENT!!! 90 DAYS WARRANTY !!!

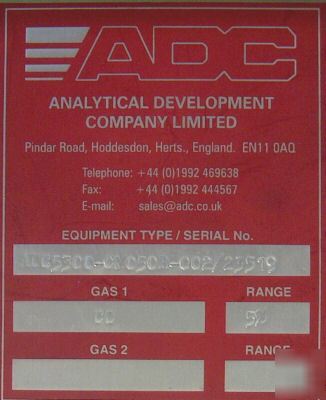

MANUFACTURER: ADC ANALYTICAL DEVELOPMENT COMPANY LIMITED
DESCRIPTION: CO GAS ANALYZER ADC5300CM050R-002
The ADC5000 Series of gas analysers combines proven infrared measurement
technology using the gas filter correlation technique with an easy to use control
Infrared Bench Oxygen cell
Repeatability of reading: 0.2% fsd 0.4% fsd
Resolution - Display: 0.2% fsd 0.4% fsd
Zero stability (per week): 1% fsd
Span stability (per week): 0.5% fsd 0.5% fsd
Temperature effect on zero (per C): 0.5% fsd
Temperature effect on span (per C): 0.4% fsd 0.6% fsd
Cell response time (to T90): 4 seconds 25 seconds
Flow rate: 0.2 to 1 l/min 0.2 to 1 l/min
Output: 0-1V or 4-20mA non isolated, user specified
Electrical connections: 1/4 jack socket for each analogue output

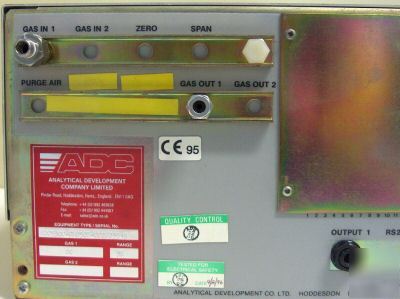

Gas fittings: 1/4 compression on rear panel
Operating conditions: 5 to 40C ambient temperature
0 to 95% relative humidity
Gas conditions: 0-50C, non-condensing at analyser entry

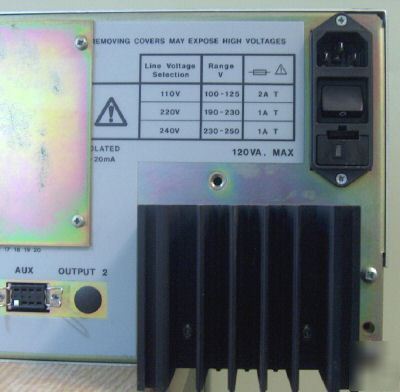

Power requirements: Nominal 110V/220V/240V/ 50-60Hz - user selectable
Carbon Monoxide CO 0.3 PPM LOWEST DETECTABLE LIMIT
OPERATION MANUAL FOR ADC 5000 SERIES GAS ANALYSER IS AVAILABLE ON PDF FORMAT, ASK FOR A COPY THROUGH E-MAIL MESSAGE!!!
!!!HABLAMOS ESPA OL, UND DEUTSCH!!!
