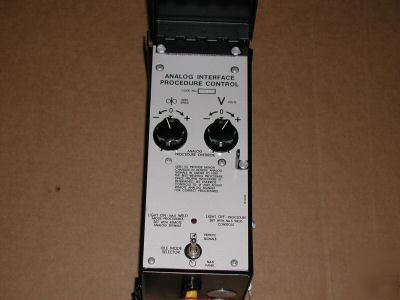

Lincoln electric analog interface procedure cntrl #K373
Lincoln Electric Analog Interface Procedure Control #K373
* The analog interface procedure control is an optional control box designed to mount and connect to NA-5 automatic controls (above code 8300) and the NA-5R.
* The control provides circuit isolated interface for remote, user-provided, 0 to 10 volt DC analog signal levels to linearly set the NA-5 Weld Mode procedures between 0 and 100% of the rated range of wire feed speed and arc voltage.
* The kit also provides 5% procedure override controls under a lockable security panel, and a selector switch to permit the choice of procedure setting control using remote analog signals or the standard NA-5 Weld Mode controls.
* Dimensions (in) H x W x D : 20.25 x 11.5 x 15.25
Dimensions (mm) H x W x D : 514.35 x 292.1 x 387.35
