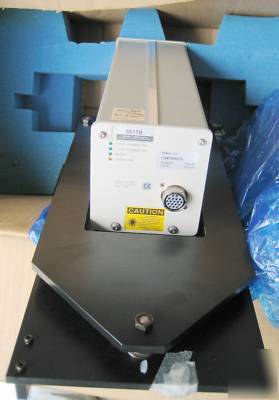

Hp/hewlett packard/agilent 5517B laser heads/transducer
HP/Hewlett Packard/Agilent 5517B Laser Heads/Transducers
* Max Velocity with Linear Optics: 500 mm/sec
* Reference frequency: 1.9 to 2.4 MHz
* Clearance required for cabling: 12.00 cm (4.72 in) beyond back of unit
* Minimum Output Power: 180 uW (standard)
* Minimum Output Power: 400 uW (option H10)
* +15V 0.3V at 2.2A maximum
* -15V 0.3V at 0.02A maximum
* Operating Dissipation: 23W
* Data Sheet2000-11-01 | PDF PDF 14.59 MB
The Agilent 5517B is used primarily in VME and PC based systems and the 5527A system where the velocity of motion is slower, such as machine tool applications. Please contact us for custom requirements.
The following features are unique to this laser head. The laser head also has all of the characteristics as listed under: Laser Heads
* Minimum beam output power: 120 uW. Option H10 is 400 uW.
* Input power requirements: +15V 0.3V at 2.2A maximum; -15V 0.3V at 0.02A maximum
* Heat dissipation: Operating: 23W, Warm-up: 35W
