Ergo spirometer excercise test system with ecg monitor
The system measures gas concentration and volumes in the breath, as it is primary data, and optinally, takes inputs from peripheral equipment such as heart rate monitors and ergometers. The calculations performed on the data produce values for a number of respiratory physiological parameters, and the reporting provides facilities for user defined multi-graph outputs.
in operation, the subject breates via a mouthpiece assembly, which monitoes the composition and flow rate of the breat. this assembly employe an inline turbine type flow-measureing device for respiratory flow measurement and a sample take off line for gas concentrations. the turbine produces a pulse train from its optical pick-up ring which represents the flow rate, and the sample take off provides a continuous flow of sampled breath to the gas analyser.
the computer provides control and user interface to the equipment, and additional equipment such as an ergometer and a heart rate monitor may be connected to the system for further data capture.
the pulse train signal from the turbine flow sensor is fed to a decoder, which provides flow rate information to the application software, calibration can be performed on the turbine device with a standart 3L syringe.
the instrument is desinged primarily to measure the two respiratory gases, oxygen and carbon dioxide, the remaining components ( nitrogen and argon) are also measured for completeness, and allow the use a dry gas normalisation. the turbine device is capable of working at a maximum flow rate of 15 litre sec.
the computer is equipped with software to run the instrument as part of the application ( Exercies test) and produces relevant output of result.
Xp professional installed to computer, XP is updated upto SP3
test will run via Analysis Suite release 3.00 at virlen computer,
MSX ergospirometer system user manual
Analysis suit installetion CD and Software user manual
HME ECG monitor with 3 leads and ECG monitor user manual
some spare parts for test, please have a look at actual picture to see spare parts

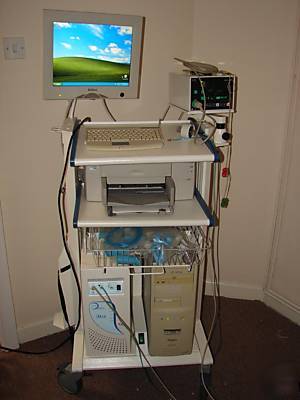

please also have a look at actual picture to see configuration of the system
if you not satisfied with item, you are welcome to return it, we will give you full refund or replaced it for you
POSTAGE AND PACKING COSTS: 90 UK DELIVERY WITH PARCEL DELIVERY
