> 6" x 6" diameter shick stainless rotary valve & drive
6" x 6" diameter shick stainless rotary valve & drive

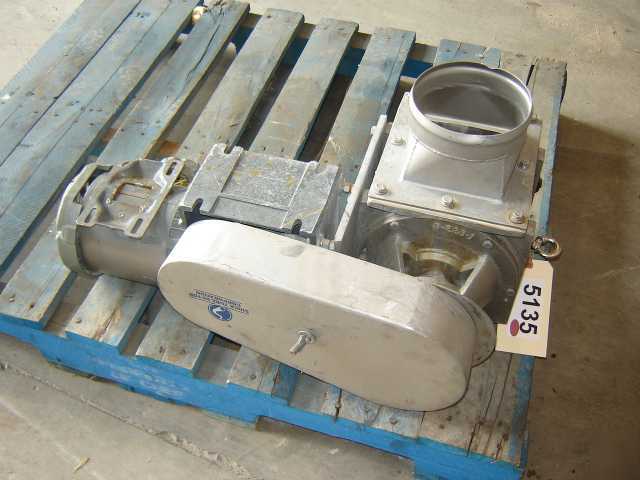

6" X 6" DIAMETER SHICK STAINLESS ROTARY VALVE & DRIVE
STAINLESS STEEL CAST BODY AND STAINLESS STEEL ROTOR. ROTOR IS FIXED TIP DESIGN WITH OUTBOARD BEARINGS AND PURGEABLE SEAL. FACE TO FACE DIMENSION ON VALVE IS 10". ONE FLANGE ON VALVE IS 6" DIAMETER ROUND. OPPOSITE END FLANGE IS 6" SQUARE. SOME UNITS HAVE A FLANGED SQUARE TO ROUND ADAPTOR GOING FROM 6" SQUARE TO 6" DIA ROUND. DRIVE: U.S. MOTORS UNIMOUNT 125 ENCLOSED HIGH EFFECIENCY MOTOR. MOTOR MODEL # F008B. 1/2 HP, 3 PHASE, 60 HZ, 1745 RPM, 208-230/460 VOLT, CONTINUOUS DUTY TOTALLY ENCLOSED, 1.25 SERVICE FACTOR.
