Ua 7915KC negative voltage regulator, –15V, 1.5A

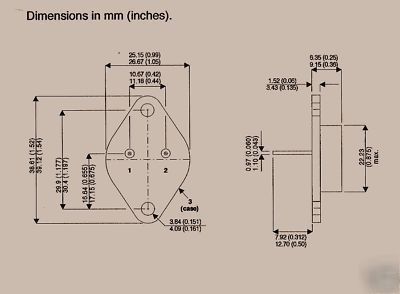

3 terminal fixed negative voltage regulator in a TO3 type package designed for use
in applications requiring a well regulated positive output voltage. Outstanding features include full power
usage up to 1.5A of load current, internal current limiting, thermal shutdown, and safe area protection
on the chip, providing protection of the series pass Darlington, under most operating conditions.
Hermetically sealed steel packages are utilized for high reliability and low thermal resistance. A low
noise temperature stable band gap reference is the key design factor insuring excellent temperature
regulation of the 7915. This coupled to a very low output impedance insures superior load regula-
Guaranteed Input Output Differential: VIN VO = 2.1V
Guaranteed Thermal Resistance Junction to Case: RthJC = 3 C/W
Input Voltage (Note 1), VIN 40V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Dissipation, PD Internally Limited
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Derate Above TC = 105 C 333mW/ C
Operating Junction Temperature Range, TJ 55 to +150 C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage Temperature Range, Tstg 65 to +150 C
Lead Temperature (During Soldering, 60sec Max), TL +300 C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal Resistance, Junction to Case, RthJC 3 C/W
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note 1. Short circuit protection is only assured to VINmax. In case of short circuit, with input output
voltages approaching VINmax, regulator may require the removal of the input voltage to restart.
