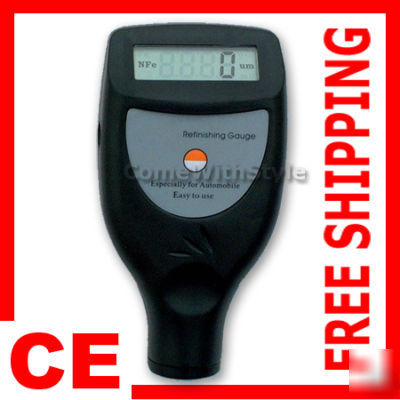

Pro digital coating thickness gauge tester vessel iron
This item conquers the difficulties of non-destructive measuring of coating thickness on both magnetic
and non-magnetic base that can be used on many applications even on applications that require greater
precision. uses magnetic induction and eddy current to measure the coating thickness non-magnetic
materials on magnetic materials and non-metallic coatings on non-magnetic metals with built-in probes.
Application: used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers,
l 10MM(0.4 ) LCD 4 digits display
l Measuring Ranges: 0-1250 um/0-50 mil
l Resolution: 0.1um (0-99.9um) 1um (over 100um)
l Accuracy: 1-3%n or 2.5um or 0.1 mil
l Automatic substrate recognition without guessing / choosing the probes
l Operating Temperature: 0 C-50 C (32 F-122 F)
l Operating Humidity: Less than 80% RH
l RS232C interface capable of communicate with computer by optional software & cable for statistics
l Single and Continuous Measurement mode
l One button can easily do all the jobs
l Power Supply: 4X1.5AAA (UM-4) battery
l Dimension: 126X65X27mm (5X2.6X1.1")
l Weight: about 81g/0.2lb. (Without battery)
Sell for $598 and up at most retailers !!!
