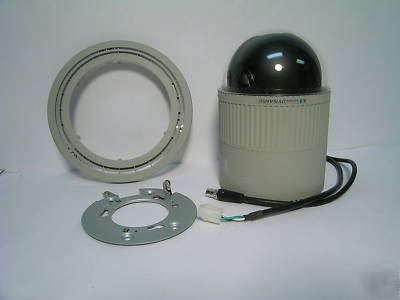

Panasonic ^ wv-CS654 combination color camera
COSMETICALLY GOOD - SOME MINOR SCRATCHES - NO INSTRUCTIONS - ONLY WHAT IS PICTURED
5" compact sized all-in-one dome color camera
1 3" Super Dynamic CCD: 768(H) x 494(V)
480-line horizontal resolution
3rd generation digital signal processor (DSP)
FLIP-A-CHIP function provides easy
tracking of objects moving directly under the
Built-in Super Dynamic function has 32X
wider dynamic range compared to
conventional camera enabling the best detail,
even under difficult lighting conditions
50dB of S/N ratio (AGC off, weight on)
Minimum illumination 3 lux (0.3 fc) at f/1.2
2nd generation built-in digital motion
Electronic sensitivity enhancer (max. 32X)
Back light compensation (BLC)
Built-in character generator of up to 16 letters
Panning speed of maximum 240 /sec. (preset)
64 preset positions, focus, zoom, ratio,
Remote control function with single coaxial
VD2 sync capability for the large system
Panasonic presents our highly advanced
unitized color video surveillance device
high performance camera, pan/tilt mechanism,
10X zoom lens and receiver in its compact
enclosure. It also incorporates a 3rd
generation DSP LSI which achieves a much
wider dynamic range. The combination of a
1 3" CCD and new DSP circuit design
produces a dynamic range that is an incredible
32 times greater than the dynamic range found
in conventional cameras. The WV-CS654 also
features Panasonic s FLIP-A-CHIP function that
automatically rotates the camera to simplify
tracking of people walking directly under the
camera. With Panasonic s Super Dynamic
all-in-one color device, you can get satisfactory
pictures under difficult lighting conditions.
