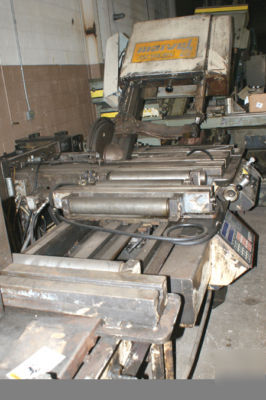

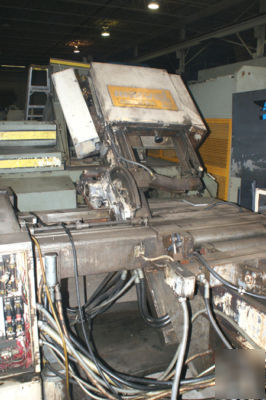

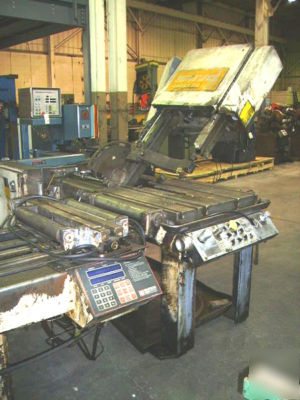

Used marvel 81A10PC fully automatic vertical band saw
Used Marvel Model 81A10PC Fully Automatic Vertical Bandsaw
Complete with PC II Microprocessor Control, Auto Mitering, and
Speed Range: 60 400 fpm (infinitely variable, hydraulically controlled)
Feed rate: 0 to 300 lbs. (infinitely variable)
Blade: 14 6 x 1.25 wide x .042 thick
Table surface: 30 wide x 27 long
Main drive: 10 HP, 1800 rpm TEFC, ball bearing
Electrics: wired for 460 volt, 3 phase, 60 hertz

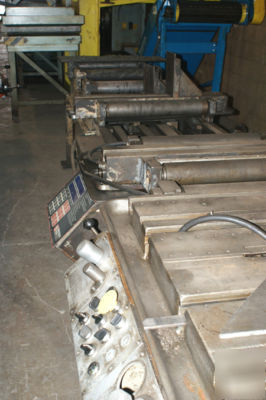

Shuttle feed table: 10 foot long
Feed length: 24 per stroke, 19 strokes available for maximum of 456
Dimensions: 179 long x 97 wide x 89- high

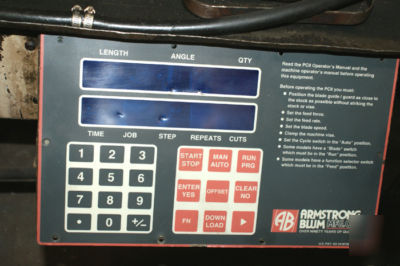

Micro processor control unit with dual -numeric display and operator key pad fo
1) setting cut-off lengths up to 24 (610 mm) per single index or longer, using multi-cycle feature,
2) presetting number of pieces to be cut. Inch/metric capability, and
3)to preset angles for miter cutting. Memory feature permits storing preset cut-off length, angle and number of pieces for up to 99 jobs. Includes out-of-stock shut down device
Canted Column: Modification of standard column to add 3 degree forward approach angle, for increased efficiency in cutting of structural materials.
Blade Tension: Hydraulically controlled factory set 30,000 p.s.i.
Upper Blade Guide Arm: Hydraulically positioned, controlled by selector switch at operator s station
Coolant System: Built-in, flood type.
Crank-type manually operated chip conveyor and chip pan.
Flushing Hose: Washes away chips from hard-to-get-at places, reducing clean-up time
Outboard Vise second bar feed vise mounted in fixed position byond shuttle vise for additional clamping of incoming work. Allows for use of pusher bar for continuous cutting from one bar to the next.
Second Machine Vise, complete for clamping work on both sides of the blade, permitting trim cuts on both ends of the work piece. Includes hydraulic clamp and hose for front jaw and ratchet nut for rear.
CAN BE A PRODUCTIVE SAW WITH SOME REPAIRS
CANTED HEAD / AUTOMATIC MITERING
NORMAL LIST PRICE IS $7,500.00
Be sure to add us to your favorite sellers list for daily additions!!!
For more specs on this machine and others please visit
6% Michigan sales tax where applicable.
It is the user s responsibility to provide proper safety devices and equipment to safeguard the operator from harm for any particular use, operation or set up, and to safeguard adequately the machine or machines to conform to all Federal, State and Local Government Safety Standards, and all Industry Safety Standards.
