New ridgid 1822-i pipe threader 815A die 4-6" w 141 161

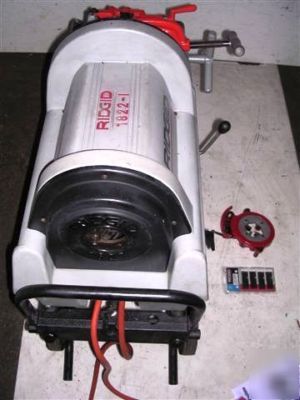

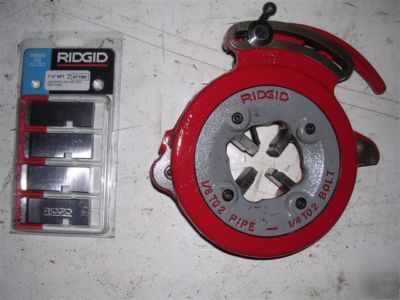

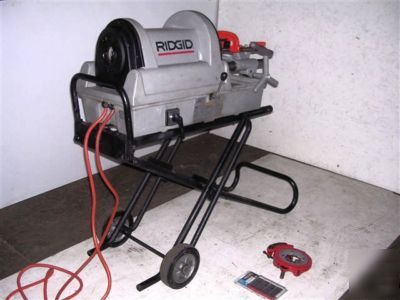

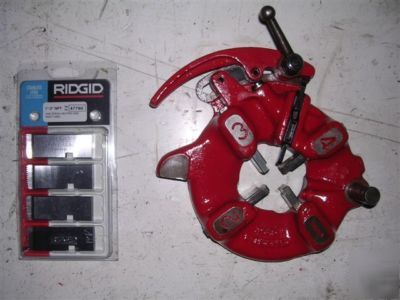

YOUR LOOKING A USED BUT NEWER 1822-I RIDGID THREADER, IN "VERY NICE CONDITION"! IT COMES WITH A 815A SELF OPENING, SELF OILING DIE HEAD LOADED WITH DIES 1/2"-3/4"AND A NEW SET OF 1"-2", WITH THE THROUGH THE HEAD OILING SYSTEM (this means as the pipe is being threaded, oil is automatically pumped through the die heads keeping the cutting teeth bathed in oil and when the threading is done, the die head automatically opens, so you can back off the carriage without having to reverse the threader or open the die head manually! This saves a full step and probably cuts the time to thread a pipe by 25%!). THIS UNIT ALSO HAS AN AUTOMATIC CHUCKING SYSTEM THAT CHUCKS DOWN ON THE PIPE WITH THE FLIP OF A SWITCH AND UNLOCKS, OR UNCHUCKS WITH A FLIP OF THE REVERSING SWITCH. THIS UNIT INCLUDES A RIDGID COLLAPSABLE ROLLING WHEEL STAND! ALL DIE TEETH ARE PERFECT, NO CHIPS AND ONE SET IS NEW! There is a fracture on the plastic around the oil/chip strainer. Cosmetic only and doesn't affect the return of oil to the reservoir, but wanted to make sure it was mentioned.
THIS IS A VERY NICE UNIT! CHECK OUT THE PIC'S! WITH THE FOLLOWING DESCRIPTION.......
Model 1822-I Threading Machine
* Heavy-duty automatic chucking. Threads a wide range of material including black and galvanized pipe, stainless steel, IMC, PVC and heavy-wall conduit
* Induction motor (81 db) delivers constant 45 or 16 RPM as required
* Constant and proper lubrication of dies and workpiece with through-head oiling
* Triple filtration provides for longer oil pump life and clean threads
* High impact-resistant covers for durability
* Special jaw inserts allows for quick, easy replacement
* Pipe Capacity: 1/8" - 2" (3 mm - 50 mm), 2 1/2" - 4" (62 mm - 100 mm) with No. 141 Geared Threader
* Bolt Capacity: 1/4" - 2" (6 mm - 50 mm)
* Motor: 1 1/2 HP, single-phase, 60 Hz or 50 Hz, induction
* Motor Control: Open/Off/Close, heavy-duty rotary type switch and integral safety foot switch
* Spindle Speed: 45 and 16 RPM, right hand, can be adapted to left hand operation
* Transmission: Two-speed (45 RPM for standard pipe and 16 RPM for low-voltage and special materials)
* Front Chuck: Automatic gripping/centering
* Rear Centering Device: Automatic, centering only
* Cutter: Model 364, 1/8" - 2" full-floating, self-centering with E-1032 Cutter Wheel
* Reamer: Model 344, 1/8" - 2" right hand only
* Clutch: Shiftable cone type
* Oil Pump: Self-priming gerotor
