New icom ic-R20-11 exp wide scanner receiver unblock

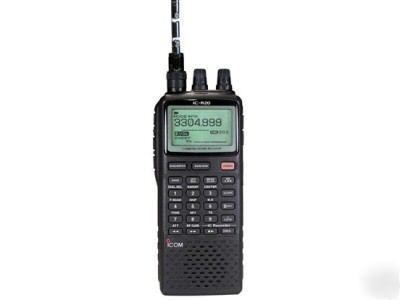

ICOM IC-R20 Wide Band EXP Wideband Receiver
Warranty: 1 year(s) Product code: ICOM IC-R20
ICOM R20 has extremely wide coverage from 150 kHz to 3304.999 MHz. Modes of reception include: FM, WFM AM, (SSB) USB, LSB, CW. This radio has two VFOs with dual watch capability.
* IC-R20 wide band receiver body
* BP-206 Li-ion Rechargeable battery pack
Until the IC-R20, the capability of monitoring two frequencies required two radios. Whether you need to monitor local public safety, air traffic control, or at the track listening to two drivers, even the play by play from both the local TV and radio station is possible! (See specifications for actual frequency ranges for Dualwatch receive.)
Shortwave to microwave, Wideband coverage
The IC-R20 covers 150kHz to 3304.999MHz in SSB, CW, AM, FM and WFM modes. This covers AM/FM radio and TV broadcasts, wireless communications for boaters, aviation, conventional public safety and many other commercial services.
The IC-R20 has an internal 32MB digital recorder capable of storing received communications. This feature is useful in a variety ways, like recording a wireless microphone audio at a meeting. There is also a USB port to download to a computer for storage or to forward to a friend. (PC playback not possible)
When multiple users share the same channel, these users use specialized signaling to reduce interference from other users. The two popular signaling formats, CTCSS and DTCS are standard in the IC-R20. Tone scan is also possible.
With 1,000 regular memory channels, 200 automatic memory scan channels and 25 pairs of frequency scan edges, the IC-R20 makes it easy to identify received signals with the capability of programming a name to each channel.
11 hours of continuous receive*
Icom's energy efficient design allows the IC-R20 11* hours of continuous reception from the internal Li-Ion battery pack. Also, the IC-R20 can operate with 3 AA Alkaline cells, or longer operation as well as charging the internal battery pack is possible from either an optional cigarette lighter cable or the supplied AC adapter. (* Single receive in FM mode, at Max. AF audio.)
Sometimes hearing a signal is not enough, so the IC-R20 includes a band scope. The bandscope enables you to see signals around a monitored frequency. An additional function of the bandscope is the ability to hear the signal while sweeping a range, so you can see if the signal is modulated.
The IC-R20 is Icom fastest receiver with 100* channels per second scanning speed. You can tag memory channels into dynamic banks, ranging from Max. 100 channels per bank (Max. 26 banks) as well as link multiple banks for customized memory bank scanning. Additionally, the IC-R20 offers multiple scanning controls such as scan delay, scan resume for received signal notification. (* In VFO mode.)
* VSC (Voice Squelch Control) opens the squelch only when a modulated signal is detected.
* Offset monitor capability for semi-duplex channel monitoring
* Built-in attenuator and RF gain control
* Noise blanker, ANL (Auto Noise Limiter), AF filter
* AFC (Auto Frequency Control) function
* CI-V PC remote control capability with optional CT-17
* Auto power off and power save functions
* Rotary selector and up/down buttons are reversible
* Preprogrammed with TV and popular shortwave channels
* Mode: FM, WFM AM, USB, LSB, CW
* Tuning Steps: 0.1, 0.5, 1, 5, 6.25, 8.33, 9, 10, 12.9, 15, 20, 25, 30, 50, 100 kHz
* Antenna Connector: BNC (50 ohms)
* Usable Temperature Range: -10 C to +60 C; +14 F to +140 F
* Current Drain Single Watch (at 13.5 V DC):
* Rated Audio: 180 mA typ.
* Power Saved: 50 mA typ.
* Power Supply Requirement: 6 V DC (4 AA (R6) Ni-Cd cells); or, 4.8-16 V DC acceptable (negative ground)
* Dimensions: 58(W) x 140(H) x 31(D) mm, 2.3(W) x 5.6(H) x 1.2(D) in (projections not included)
* CI-V Connector: 2-conductor 3.5(d) mm (1/8")
* Receive System: Triple conversion superheterodyne + downconverter
* 1st: 266.7 MHz (340.000-999.9999)
* 429.1 MHz (except above freq.)
* Sensitivity (typ.): (except spurious points)
FM and WFM are measured at 12 dB SINAD; AM, SSB and CW are measured at 10 dB S/N.
* Squelch Sensitivity: (at threshold)
* SSB, CW: More than 3 kHz/-6 dB
* AM, FM: More than 12 kHz/-6 dB
* WFM: More than 150 kHz/-6 dB
* Audio Output Power: More than 100 mW at 10% distortion with an 8 ohm (at 13.5 V DC) load.
* Stability: 6 ppm (-10 C to +60 C; +14 F to +140 F)
* Scan Rate: 100 channels per second (in VFO mode)
* External Speaker Connector: 3-conductor 3.5(d) mm (1/8")/8 ohms
* BP-206 Li-Ion BATTERY CELL ASSEMBLY
3.7V/1650mAh Lithium Ion battery pack.
6V DC, 1A output AC adapter.
Rapidly charges the BP-206 in 2.5 hours (approx.).
AC adapter, BC-123A/E supplied with the charger.
* CP-18A/E CIGARETTE LIGHTER CABLE
6V DC, 2A output from 12V cigarette lighter socket.
* CT-17 CI-V LEVEL CONVERTER
For receiver remote control from a PC.
* CS-R20 CLONING SOFTWARE (With USB cable)
Use a PC to easily edit stored memory channels, recorded contents and receiver settings.
(Microsoft Windows 98/Me/XP/2000)
Helps protect the receiver from scratches, etc.
A fast and easy way to remove the receiver from your belt.
Alligator type. Same as supplied.
Provides clear audio even in noisy environments.
