Linton lt-6100 plus 400-470MHZ transceiver fm radio
Linton LT-6100 Plus combines excellent functionality with tiny size. It transmits and receives on any frequency between the range of 400MHz and 470MHz. The frequency covers most of the all license-free / FRS radio frequencies worldwide.
Here are some exceptional features of LT-6100 Plus:
* Ultra compact design of 97.5 x 53 x 28.5 mm;
* Long operation capability with li-lon battery;
* Low/Med/High output power: 1W/2W/4W selectable;
* Clear orange LCD backlight;
* Keypad lock; and many more.

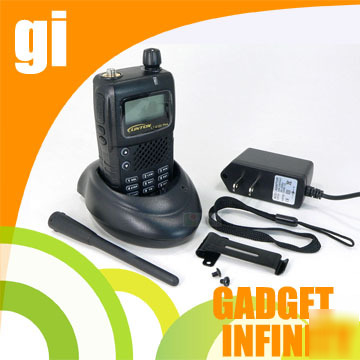

* Linton LT-6100 Plus UHF Handheld Transceiver;
* Package includes: LT-6100 PLUS Handheld Transceiver (x1), battery pack (x1), AC adapter 100-240V input (x1), desktop charger (x1), antenna (x1), waist strap (x1), copy of English user manual (x1);
* Frequency range: 400-470MHz;
* Channel spacing: 5kHz / 6.25kHz switchable;
* Power supply: DC7.4V. 1200 mAh;
* Memory channel: 128 channels;
* Working mode: same frequency simplex operation or different frequency simplex operation;
* Ground method: negative pole;
* Dimensions (not including antenna): 97.5 x 53 x 29.5mm;
* Transmitter specifications:
* Output power: 1W/2W/4W selectable;
* Maximum frequency deviation: +/-2.5KHz/ +/-5KHz;
* Spurious Radiation: < -60dB;
* Preemphasis character: 6dB;
* Emission current: 0.7A/1.0A/1.5A.
* Receiver specifications:/font>
* Inter-modulation interference resistance: 65dB;
