New honeywell T822D1032 24V T822D heating thermostat

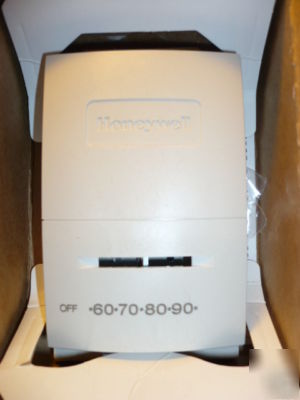

Honeywell 24V Heating Thermostat
This unit sells for over $37.00 street price and we are selling at only $19.00.
Thermostats provide 24 Vac control of heating system. Bimetal operates dustproof, SPST mercury switch with ADJ. Hrsy anticipator and ranges from 55 F to 95 F.
* Vented cover for improved temperature sensing.
* Coiled bimetal element operates mercury switch.
* Setting lever and thermometer scale on thermostat face.
* Straight-in wiring capability.
* Mounts directly on the wall or on vertical outlet box.
* Description Thermostat for heating systems
* Mounting Vertical
* Terminal Designations R, W
* Stages 1 Heat/1 Cool
* Switch Type Mercury Switching Action Spst
* Electrical Ratings (Vac) 20 to 30 Vac
* Accuracy (C) 1 C
* Dimensions (in.) 4 3/4 in. high, 2 7/8 in. wide, 1 3/8 in. deep
* Dimensions (mm) 121 mm high, 73 mm wide, 35 mm deep
* Setting Temperature Range (F) 55 F to 95 F
* Setting Temperature Range (C) 13 C to 35 C
* Anticipator (heating) 0.18 to 1.0A Adj.
* Approvals, Canadian Standards Association Certified; File No. LR95329-1
