K2 cnc router mount -hitachi bosch porter cable makita
**Please email us your mount selection.**
Please select from one of the CNC Router Mounts

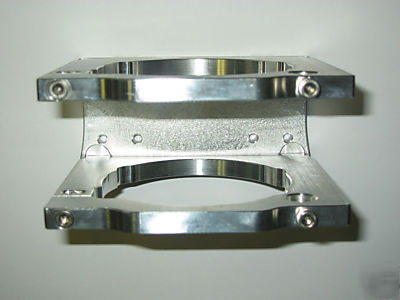

These is a router mounts are designed for applications like cnc cutting, jig of your own. The design uses 10-32 screws to hold in the router. A shaft with a .500 inch diameter may be used to hold a shaft that extend down to a vacuum devise that collects dust. The 6061 Aluminum material was machined on a VF-3 Haas CNC Center Milling Machine. You can use the drawing below with the hole arrangements to build your jig and holding fixture to accept the router mount.
CNC Routering, Jig Up your work, Vertical Holder for vertical right side up jobs.
Pre Drilled .5 shaft hole , 10-32 set screw.
Use for holding shaft for your design dust collection vacuum holes (not included or available)
2.5" x 1" (4 qty) 10-32 thru holes. K2 old configuration.
4.0" x 1 (4 qty) 10-32 thru holes. K2 new configuration.
Images are samples and design of mount will have hole diameter variations.
