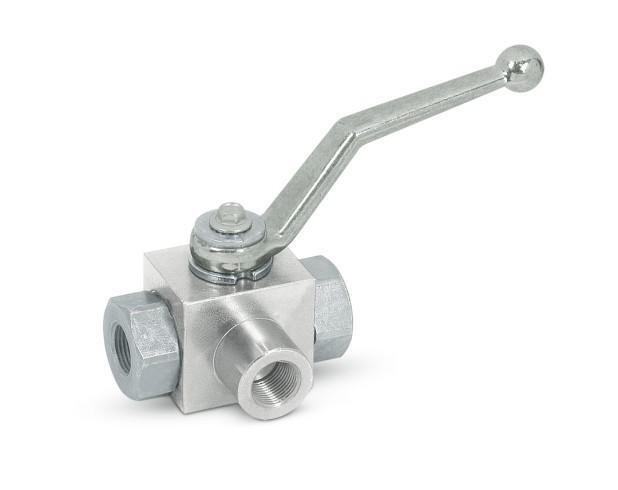

Hydraulic 3 way ball valve 1/2" bsp 60 l/min
Hydraulic 3 Way Ball Valve 1/2" Bsp 60 l/min
HYDRAULIC 3 WAY BALL VALVE 1/2" BSP
Use and operation:- These valves are used to divert the inlet flow towards 2 alternate ports ("L" configuration).
* Internal parts - Hardened and ground steel
* Seals - Buna N standard and POM seals
Applications - Connect P to the pressure flow, A and B to the circuit ports where the flow has to be diverted to. With the lever at 90 deg. Flow is connected to port A (position 1), with lever in line flow is connected to port B (position 2).
