Dpdt toggle switch T201SHCBE on-none-on 5 per lot nos

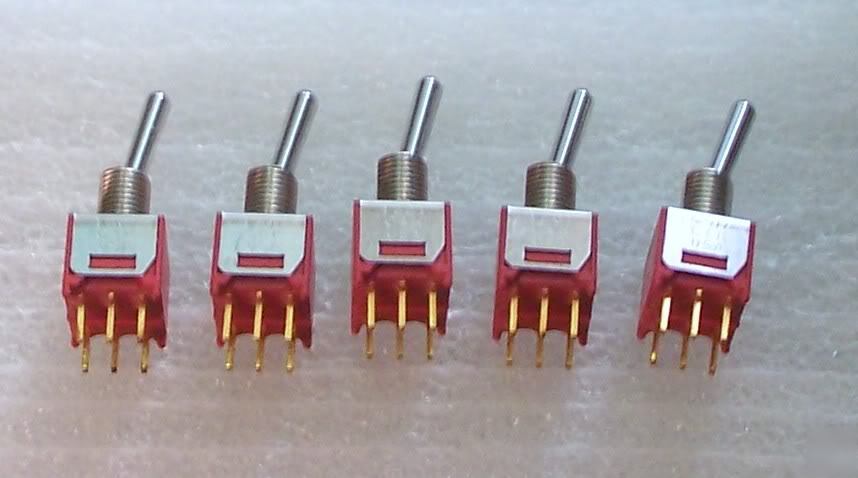

DPDT Toggle Switch T201SHCBE on-none-on 5 per lot NOS
T Series Subminiature Toggle Switches
DPDT Toggle Switch on-none-on 5 per lot - NOS
Switch Function: T201 DPDT On-None-On
Bushing: H .220" high, threaded, flat
http://download.siliconexpert.com/pdfs/2008/03/27/pemco_b/manual/ckco/toggle20switches/ttoggle_4feb.pdf
CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or
DC max. Q contact material (TX01 models): 3 AMPS @
120 V AC or 28 V DC. All other models: 2 AMPS @
120 V AC or 28 V DC. See page G-42 for additional ratings.
ELECTRICAL LIFE: TX01 models: 60,000 make-and-break
cycles at full load. All other models: 30,000 cycles.
CONTACT RESISTANCE: Below 20 m
2-4 V DC, 100 mA, for both silver and gold plated contacts.
DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level.
OPERATING TEMPERATURE: 30 C to 85 C.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
