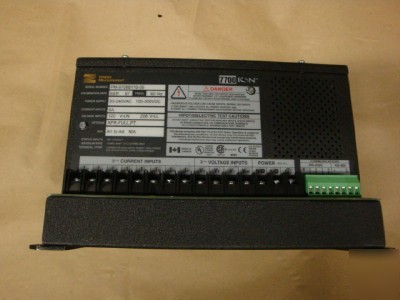

Power measurment ION7700 intelligent metering control
Power Measurment ION7700 Intelligent Metering Control
Power Measurment ION7700 Intelligent Metering Control main part only
For use by industrial sites, commercial facilities, utilities, power marketers, and energy service companies, the ION 7700 meter offers incredible flexibility and functionality by combining high accuracy, revenue certified power and energy measurements, plus an extensive variety of I/O combinations for universal metering.
Detailed power quality analysis features keep you informed about your power distribution system.Integrate the meter with our ION EEM software, ION Enterprise software or other energy management and SCADA systems through multiple communication channels and protocols.
* True RMS 3-phase voltage, current and power
* Instantaneous 3-phase voltage, current, frequency, and power factor
* Energy: bi-directional, absolute & net
* Demand: rolling block, predicted, and thermal
* Harmonics: individual & total harmonic distortion up to the 15th
* Advanced logic and mathematical functions
* K-Factor for voltage and current inputs
* Crest Factor using ION Enterprise software
* Optional built-in modem with ModemGate to allow modem access for 31 other devices
* 10Base-T or 10Base-FL Ethernet port option with EtherGate for direct data transfer from Ethernet to as many as 31 RS-485 devices
* Modbus RTU and DNP 3.0 protocol support
* Waveform recording at 128 samples per cycle; the maximum number of cycles for contiguous waveform capture is 98,819 cycles (based on 16 samples/cycle x 96 cycles, and the largest capacity of meter memory including the memory upgrade option)
* Scheduled or event-driven logging of up to 96 parameters
* Sequence-of-events & min/max logging
* Setpoints for control and alarms
* Setpoint on any parameter or condition
* 4 optional analog inputs
* Up to 30 additional I/O points can be ordered
Discover the sources of power quality events, harmonics, and voltage sags/swells. Analyze problems and avoid repeat interruptions.
Determine cost centers, identify opportunities for demand control and check energy consumption patterns.
* Demand & Power Factor Control
Avoid penalties with automated load shedding, scheduling, peak shaving or capacitor bank control.
* Load Studies & Circuit Optimization
Determine the capacity of your electric network and run at peak efficiency. Perform load trending.
* Equipment Monitoring & Control
Improve process yields and extend equipment life. Meter all your utilities including gas, steam, water and more.
Set up alarms to warn of pending problems. Log events and alarms for all critical conditions.
* please check my store for both of them.
