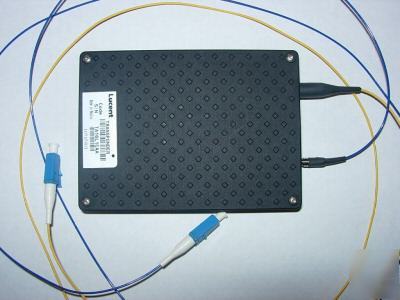

Lucent 2.5 gbits/s transponder w/16-channel 155 mbs m/d
1). TA16L1CAA 1310nm Long Haul Transponder LR-1.
2). TA16N1CAA 1310nm Intraoffice Transponder IR-1.
3). TA16L2CAA 1550nm Long Haul Transponder LR-1.
4). TA16L2CAA 1310nm Short Haul Transponder IR-2.
2.5 Gbits/s optical transmitter and receiver with
16-channel 155 Mbits/s multiplexer/demultiplexer
Available with 1.31 m Fabry-Perot laser transmitter
and PIN receiver for intraoffice applications,
and 1.31 m or 1.55 m DFB laser transmitters
and PIN or APD receiver for short-haul to long-haul
Differential LVPECL data interface
Operating case temperature range: 0 C to 65 C
Automatic transmitter optical power control
Optical transmitter disable input
Loss of signal, loss of sync, loss of framing alarms
Diagnostic loopback capability
Inter- and intraoffice SONET/SDH
High-speed data communications
The TA16 transponder performs the parallel-to-serialto-
optical transport and optical transport-to-serial-toparallel
function of the SONET/SDH protocol. The
TA16 transmitter performs the bit serialization and
optical transmission of SONET/SDH OC-48/STM-16
data that has been formatted into standard SONET/
SDH compliant, 16-bit parallel format. The TA16
receiver performs the optical-to-electrical conversion
function and is then able to detect frame and byte
boundaries and demultiplex the serial data into 16-bit
Note: The TA16 transponder does not perform bytelevel
Figure 1 shows a simplified block diagram of the
module designed to provide a SONET or SDH compliant
electro-optical interface between the SONET/
SDH photonic physical layer and the electrical section
layer. The module contains a 2.5 Gbits/s optical
transmitter and a 2.5 Gbits/s optical receiver in the
same physical package along with the electronics
necessary to multiplex and demultiplex sixteen
155 Mbits/s electrical channels. Clock synthesis and
clock recovery circuits are also included within the
In the transmit direction, the transponder module
multiplexes sixteen 155 Mbits/s LVPECL electrical
data signals into an optical signal at 2488.32 Mbits/s
for launching into optical fiber. An internal 2.488 GHz
reference oscillator is phase-locked to an external
