Kurt 8†anglelock milling vise d-80 8" x 2" jaws

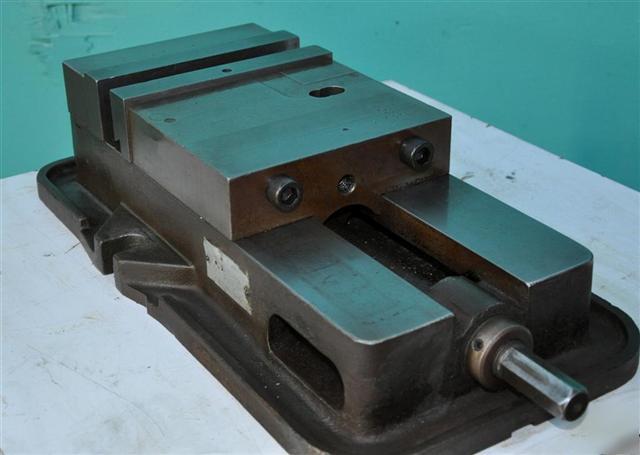

KURT 8 ANGLELOCK MILLING VISE D-80 8" x 2" JAWS
KURT 8 ANGLELOCK MILLING VISE
The original Kurt Anglock D-Series vises are designed for precision part clamping on basic machine tools such as knee-type mills, grinders and machining centers.
D-Series vises are ideal for use in running production parts where datums, flatness and parallelism is important.
You can precision bore, tap, drill, grind and finish with high accuracy on most parts made of die cast aluminum, steel, and iron in your Kurt Anglock vises.
No other brand can give you the time proven accuracy of the Kurt Anglock vises.
All Kurt vises have a friction reducing, needle bearing, thrust collar.
The needle bearing increases jaw clamping pressure.
Outside rail edges of the body are machined.
Vise nut does not extend beyond the end of the vise body.
Patented O ring pull down feature standard.
Distinctive patented design of the Kurt Look
Bed height matched to size 3.310" (73.025 mm) 0.0005"
Sealed needle thrust bearing used at hex end of screw to reduce clamping friction.
Patented O ring pull down feature is standard.
Parts from the previous body style are interchangeable with this new one.
Features of All D-Series Vises Include:
AngLock design assures the movable jaw does not lift.
Matching of bed height 0.001" available at an additional cost for the D40 and D100 vises.
Matching of the keyway to the stationary jaw 0.001" is available at additional cost.
Some models available in metric version.
OVERALL DIMENSIONS: 21.81" X 11 1/2" X 5 1/2" H.
NEW REPLACEMENT COST: $1,250.00
