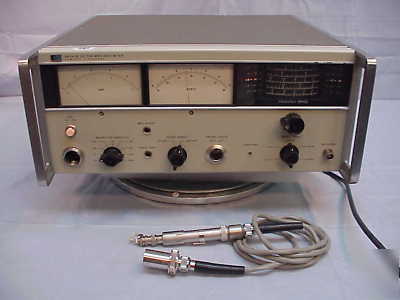

Hp 4815A rf vector impedance meter with probe tested
The HP - AGILENT 4815A RF Vector Impedance Meter is a general purpose, self contained instrument
for measuring complex impedance in a wide variety of laboratory applications. The HP 4815A frequency
range is 0.5 to 108 MHz; impedance magnitude is measured in 9 ranges from 10 ohms to 100 kohms
and phase angle on two ranges between 0 and 360 degrees.
Frequency range: 500kHz to 108MHz in 5 bands, 2% of reading.
Impedance magnitude range: 10 ohms to 100 kohms in 9 ranges, 4% f.s.;
Phase angle range: 0 to 360 in 2 ranges;
Phase angle calibration: increment of 2 .
